Type High Tensile Hinge Joint Fence | Roll Length 330 ft / 100 m | Coating Class 3 Galvanized
Request QuoteFactory-direct container pricing · quoted by fence height, wire gauge, roll length and destination port
OEM / private label available · 330 ft / 100 m common roll length · mixed container loading supported
Popular Specifications: select according to livestock and fence height

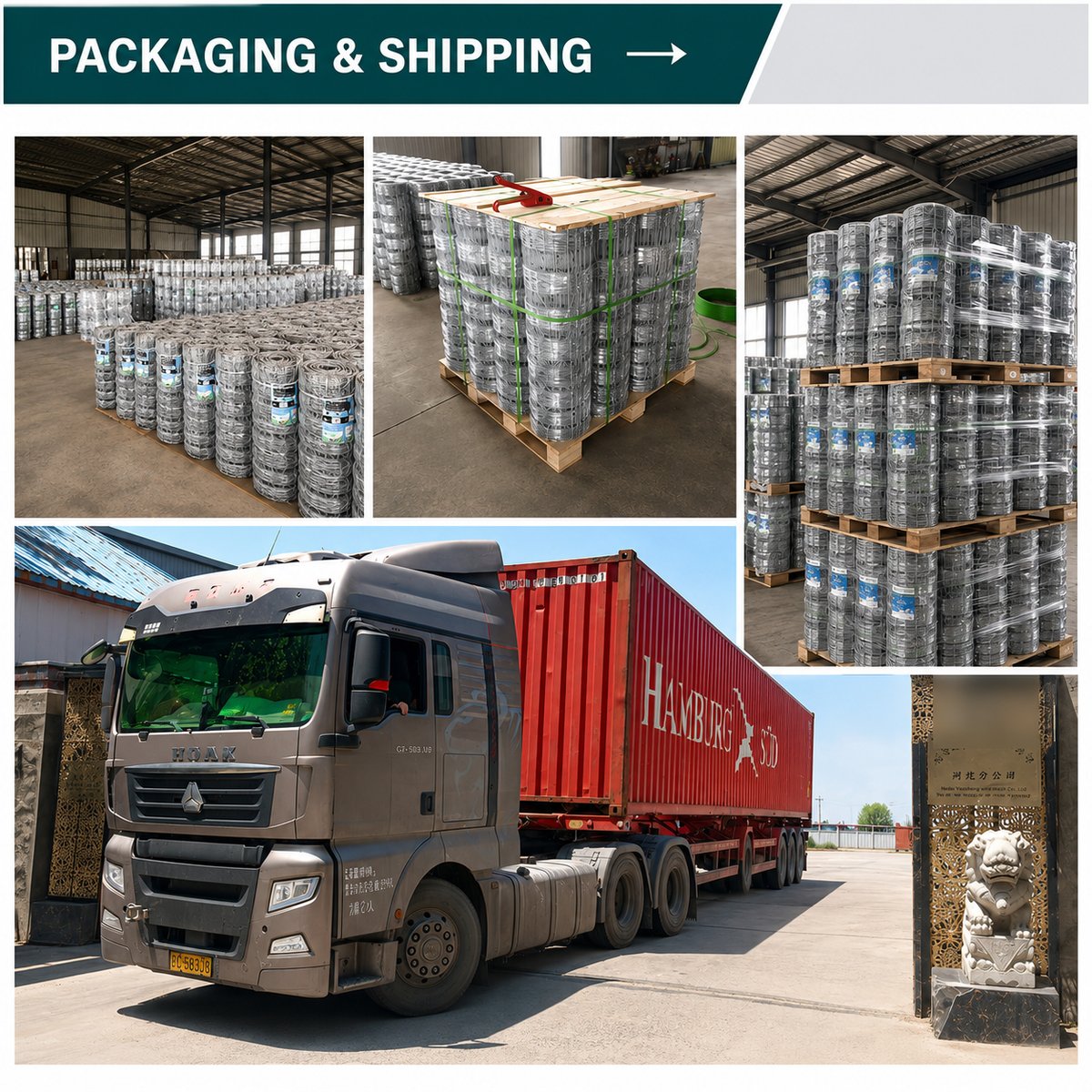

Roll, pallet and custom packing
Suitable for importers and distributors
Private label available
Customized labels and packaging for bulk orders
ISO 9001:2015 production · third-party pre-shipment inspection available · view company profile · download catalog
High tensile hinge joint fence is designed for livestock confinement, pasture fencing and agricultural field boundary protection. The woven wire structure combines horizontal line wires with vertical stay wires, while the hinge joint knot provides flexibility and impact absorption. This makes the fence suitable for uneven terrain, animal movement and long fence runs. The galvanized steel wire surface helps protect the fence from outdoor corrosion and weather exposure. Common specifications include 26 inch, 39 inch, 47 inch and 78 inch heights, with 6 inch or 12 inch vertical wire spacing and 330 ft roll length. Wire gauge and zinc coating level can be customized based on the target market and project requirements.
This product is suitable for farm supply importers, livestock fence distributors, ranch fencing contractors, agricultural wholesalers and private label buyers. OEM labels, customized packing and mixed container loading can be supported for bulk orders.
| Product Type | High Tensile Hinge Joint Fence |
| Fence Structure | Woven Wire Fence with Hinge Joint Knot |
| Material | High Tensile Galvanized Steel Wire |
| Surface Treatment | Heavy Zinc Coating / Class 3 Galvanized |
| Common Horizontal Wires | 7 wires / 9 wires / 10 wires / 14 wires |
| Common Fence Height | 26 inch / 39 inch / 47 inch / 78 inch |
| Vertical Wire Spacing | 6 inch / 12 inch |
| Roll Length | 330 ft / 100 m |
| Line Wire Gauge | 12.5 gauge / 14 gauge |
| Top & Bottom Wire Gauge | 10.5 gauge / 12.5 gauge |

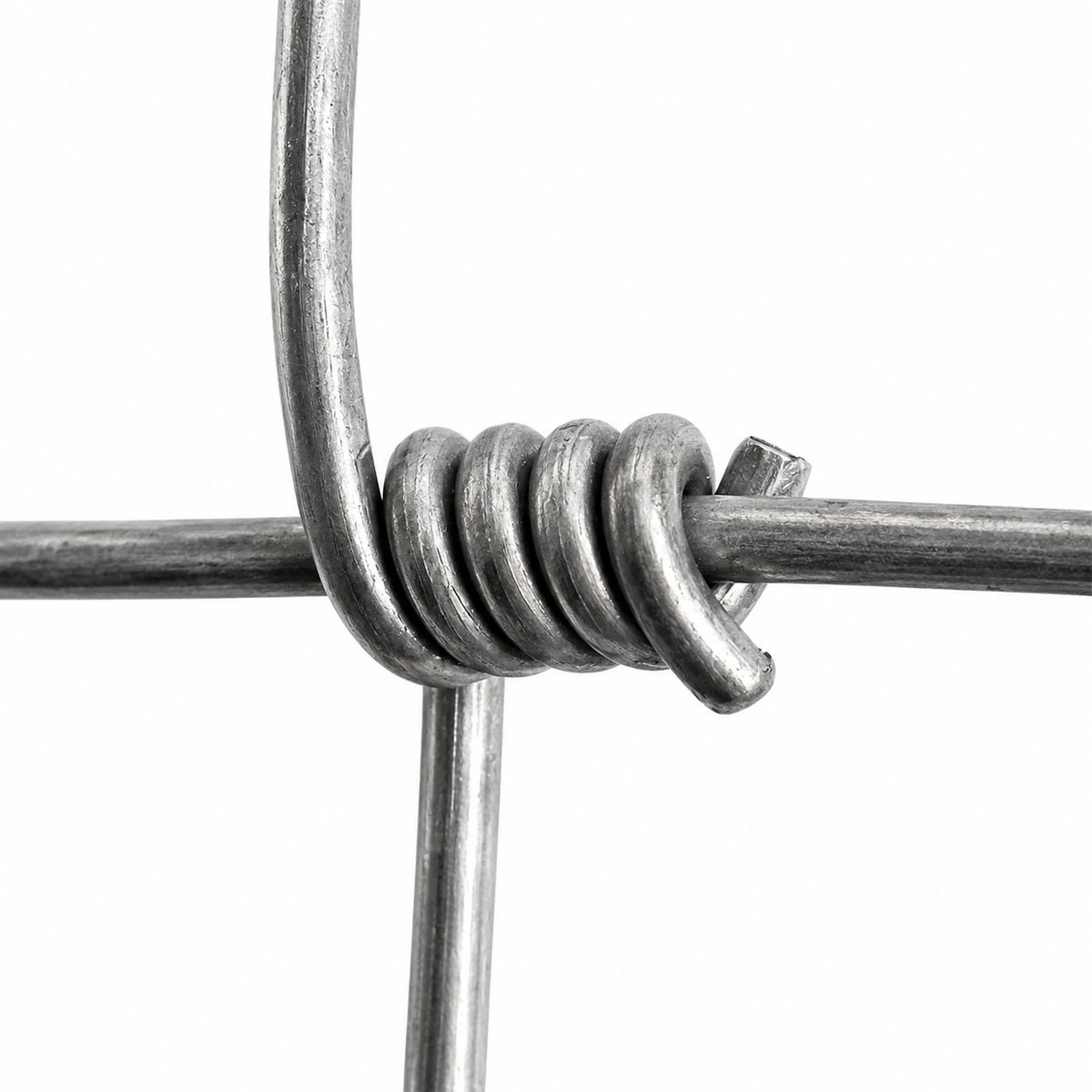

| Knot Type | Hinge Joint |
| Color | Silver Galvanized |
| Customized Options | Fence height, roll length, wire gauge, vertical spacing, zinc coating, packing and OEM label can be customized according to order requirements. |
| Packing Method | Fence rolls wrapped with plastic film, pallet packing, bundle packing or customized export packing |
| OEM Label | Available |
| Private Label Service | Available |
| MOQ | To be confirmed according to roll size and order quantity |
| 20ft Container Loading | To be confirmed according to roll height, roll diameter and packing method |
| 40ft Container Loading | To be confirmed according to roll height, roll diameter and packing method |
| Brand | OEM / Customized Brand |
| Country of Origin | China |
| Payment Terms | T/T |
| Lead Time | 15–25 days according to order quantity and production schedule |
| Sample | To be confirmed |
| Description | Horizontal Wires | Fence Height | Vertical Spacing | Roll Length | Line Wire Gauge | Top & Bottom Gauge |
|---|---|---|---|---|---|---|
| 726-6-330 | 7 horizontal wires | 26 inch height | 6 inch vertical spacing | 330 ft roll length | 14 gauge line wire | 12.5 gauge top & bottom wire |
| 939-6-330 | 9 horizontal wires | 39 inch height | 6 inch vertical spacing | 330 ft roll length | 12.5 gauge line wire | 10.5 gauge top & bottom wire |
| 939-6-330 | 9 horizontal wires | 39 inch height | 6 inch vertical spacing | 330 ft roll length | 14 gauge line wire | 12.5 gauge top & bottom wire |
| 1047-6-330 | 10 horizontal wires | 47 inch height | 6 inch vertical spacing | 330 ft roll length | 12.5 gauge line wire | 10.5 gauge top & bottom wire |
| 1047-6-330 | 10 horizontal wires | 47 inch height | 6 inch vertical spacing | 330 ft roll length | 12.5 gauge line wire | 12.5 gauge top & bottom wire |
| 1047-6-330 | 10 horizontal wires | 47 inch height | 6 inch vertical spacing | 330 ft roll length | 14 gauge line wire | 12.5 gauge top & bottom wire |
| 1047-12-330 | 10 horizontal wires | 47 inch height | 12 inch vertical spacing | 330 ft roll length | 12.5 gauge line wire | 12.5 gauge top & bottom wire |
| 1478-6-330 | 14 horizontal wires | 78 inch height | 6 inch vertical spacing | 330 ft roll length | 12.5 gauge line wire | 12.5 gauge top & bottom wire |

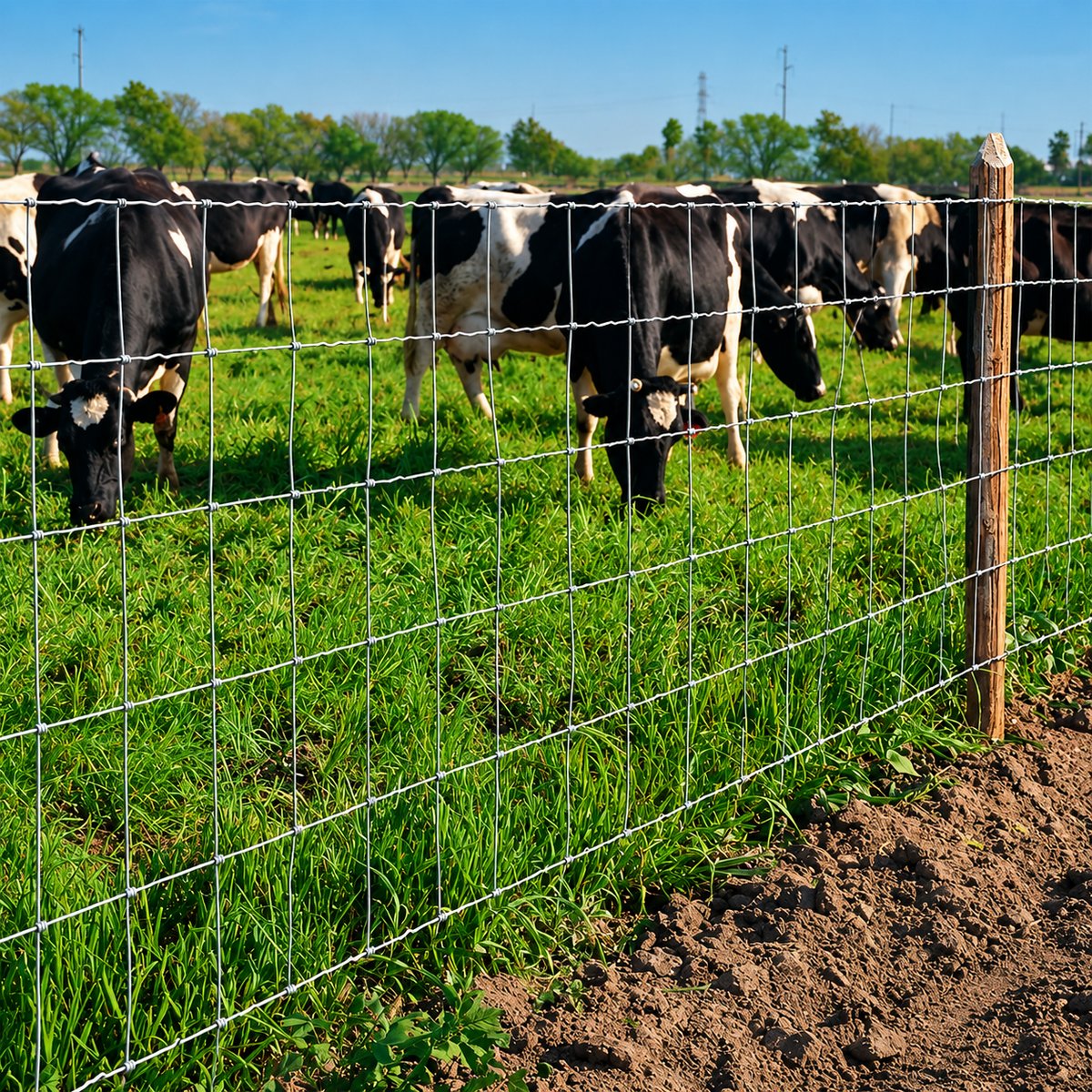

High tensile hinge joint fence is a flexible and durable livestock fencing solution made from galvanized steel wire. The hinge joint knot allows the fence to absorb impact from animals and terrain movement while maintaining stable line strength. It is widely used for cattle fencing, sheep fencing, goat fencing, pasture boundaries, ranch fencing and agricultural field protection.
Hinge joint fence is mainly used for cattle fencing, sheep fencing, goat fencing, pasture boundaries, ranch fencing and agricultural field protection.
The fence is made from high tensile galvanized steel wire. Class 3 galvanized coating is available for better outdoor corrosion resistance.
A common roll length is 330 ft / 100 m. Other roll lengths can be customized according to order requirements.
Yes. OEM labels, private label service, pallet packing and customized export packing can be arranged for bulk orders.
Buyers are recommended to provide fence height, roll length, wire gauge, vertical spacing, zinc coating requirement, quantity, packing method and destination port.
Yes. The hinge joint knot allows the fence to flex under pressure and terrain movement, making it suitable for pasture, ranch and uneven farm land.
