Type High Tensile Fixed Knot Cattle Fence | Design 1348-6-330 | Roll Length 330 ft | Coating Class 3 Galvanized / Zn-Al
Request QuoteFactory-direct container pricing · quoted by fence design, wire gauge, roll length and destination port
OEM / private label available · 1348-6-330 specification · 330 ft rolls · factory-direct bulk supply
Popular Designs: select according to livestock and fence height
Roll, pallet and custom packing
Suitable for importers and distributors
Private label available
Customized labels and packaging for bulk orders
Documented finished-goods inspection · third-party pre-shipment inspection available · view company profile · watch fixed knot fence video · download catalog

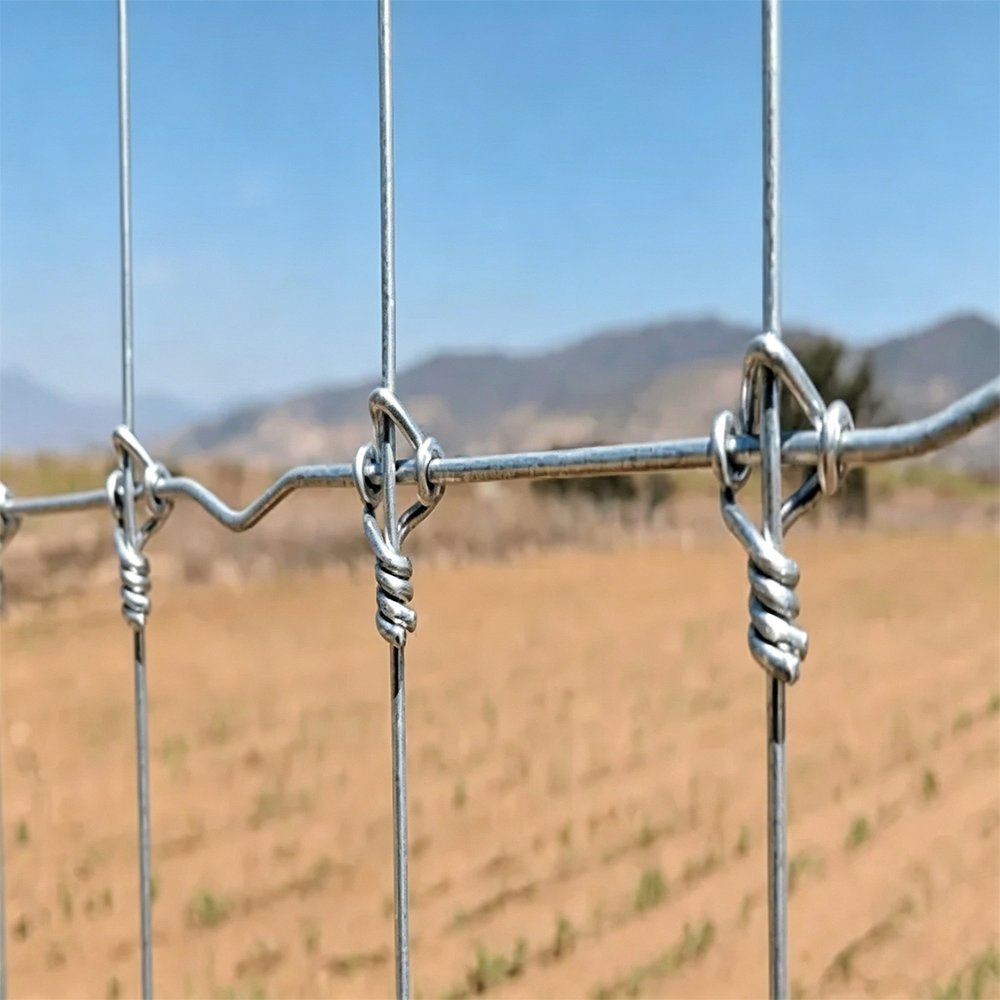

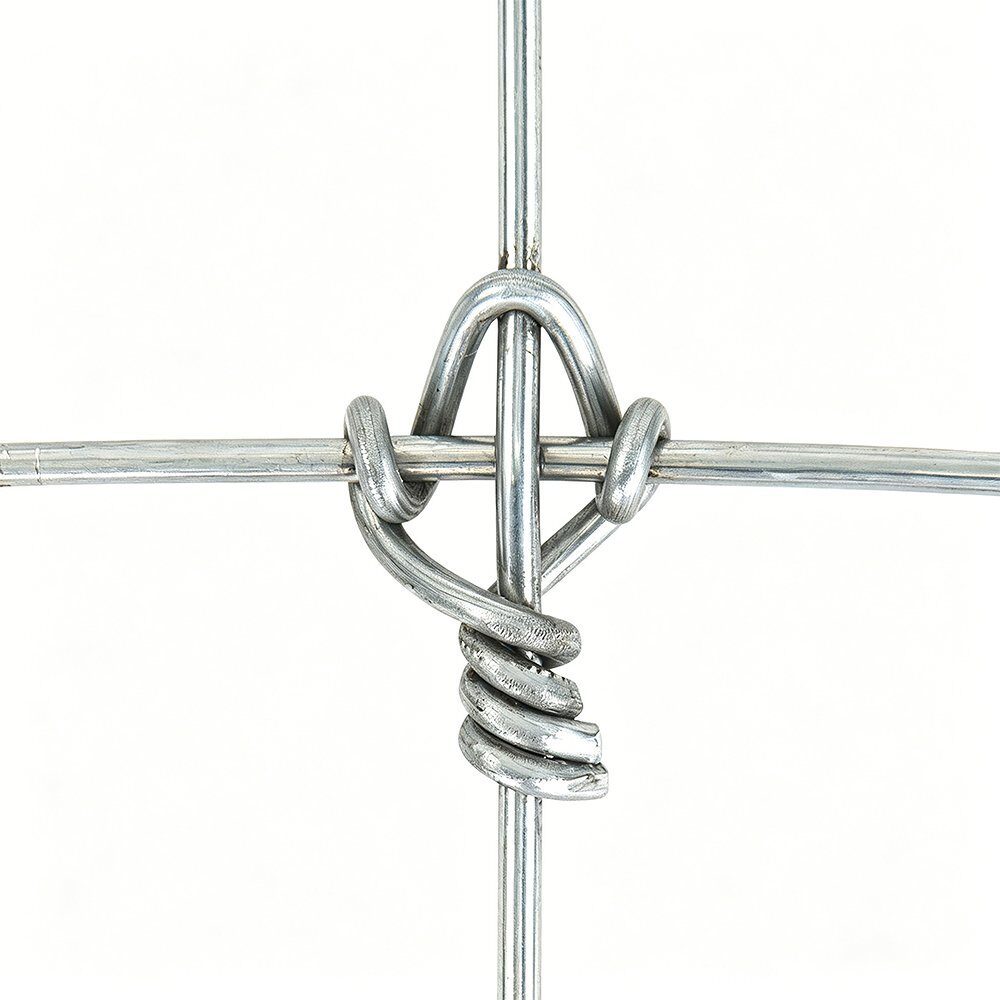

High tensile fixed knot cattle fence uses a rigid woven wire structure designed for livestock and exclusion fencing. Each intersection uses a separate knot wire that wraps tightly around both the vertical stay wire and the horizontal line wire, locking them together. Unlike hinge joint fence, the solid vertical stay wires run full height and are designed to retain fence shape under livestock pressure when the system is installed and tensioned correctly. The 1348-6-330 design uses 13 horizontal wires over a 48 inch fence height with 6 inch vertical stay spacing, woven from 12.5 gauge high tensile galvanized steel wire in 330 ft rolls. The closer 6 inch spacing helps control cattle and mixed livestock while the high tensile wire holds tension over long fence runs. Other fixed knot designs are available, and fence height, roll length, wire gauge, vertical spacing and zinc coating level can be customized for distributors and project buyers.
This product is suitable for farm supply importers, livestock fence distributors, ranch fencing contractors, wildlife exclusion projects and private label buyers. OEM labels, customized packing and mixed container loading can be supported for bulk orders.
| Product Type | High Tensile Fixed Knot Cattle Fence |
| Fence Structure | Woven Wire Fence with Fixed Knot |
| Material | High Tensile Galvanized Steel Wire |
| Surface Treatment | Class 3 Galvanized / Zn-Al (Zinc-Aluminum) Coating |
| Reference Design | 1348-6-330 (13 wires, 48 inch height, 6 inch spacing, 330 ft roll) |
| Common Fence Height | 48 inch / 49 inch / 60 inch / 96 inch |
| Vertical Stay Spacing | 3 inch / 6 inch / 12 inch |
| Roll Length | 330 ft standard for 1348-6-330; custom lengths available |
| Wire Gauge | 12.5 gauge / 14 gauge high tensile |
| Knot Type | Fixed Knot (Solid Lock) |
| Reference Roll Weight | Confirmed per quotation according to wire gauge, coating and edge-wire specification |
| Color | Silver Galvanized |
| Customized Options | Fence design, height, roll length, wire gauge, vertical spacing, zinc coating, packing and OEM label can be customized according to order requirements. |
| Packing Method | Fence rolls wrapped with plastic film, pallet packing (approx. 5 rolls per pallet) or customized export packing |
| OEM Label | Available |
| Private Label Service | Available |
| MOQ | To be confirmed according to roll size and order quantity |
| 20ft Container Loading | To be confirmed according to roll height, roll diameter and packing method |
| 40ft Container Loading | To be confirmed according to roll height, roll diameter and packing method |
| Brand | OEM / Customized Brand |
| Country of Origin | China |
| Payment Terms | T/T |
| Lead Time | 15–25 days according to order quantity and production schedule |
| Sample | To be confirmed |
| Design | Horizontal Wires | Fence Height | Vertical Spacing | Roll Length | Wire Gauge | Typical Use |
|---|---|---|---|---|---|---|
| 949-12 | 9 horizontal wires | 49 inch height | 12 inch vertical spacing | 330 ft / 660 ft | 12.5 gauge high tensile | Cattle & pasture fence |
| 1348-6-330 | 13 horizontal wires | 48 inch height | 6 inch vertical spacing | 330 ft | 12.5 gauge high tensile | Cattle & mixed livestock fence |
| 1348-12-660 | 13 horizontal wires | 48 inch height | 12 inch vertical spacing | 660 ft | 12.5 gauge high tensile | Cattle & long ranch fence runs |
| 1348-3 | 13 horizontal wires | 48 inch height | 3 inch vertical spacing | 330 ft | 12.5 gauge / 14 gauge | Small animal & predator exclusion |
| 1660-6 | 16 horizontal wires | 60 inch height | 6 inch vertical spacing | 330 ft | 12.5 gauge high tensile | Deer, elk & boundary fence |
| 2096-6 | 20 horizontal wires | 96 inch height | 6 inch vertical spacing | 330 ft | 12.5 gauge / 14 gauge | Deer & game exclusion fence |
Design code reading: 1348-6-330 = 13 horizontal wires, 48 inch fence height, 6 inch vertical stay spacing and 330 ft roll length. Other designs can be woven to order.

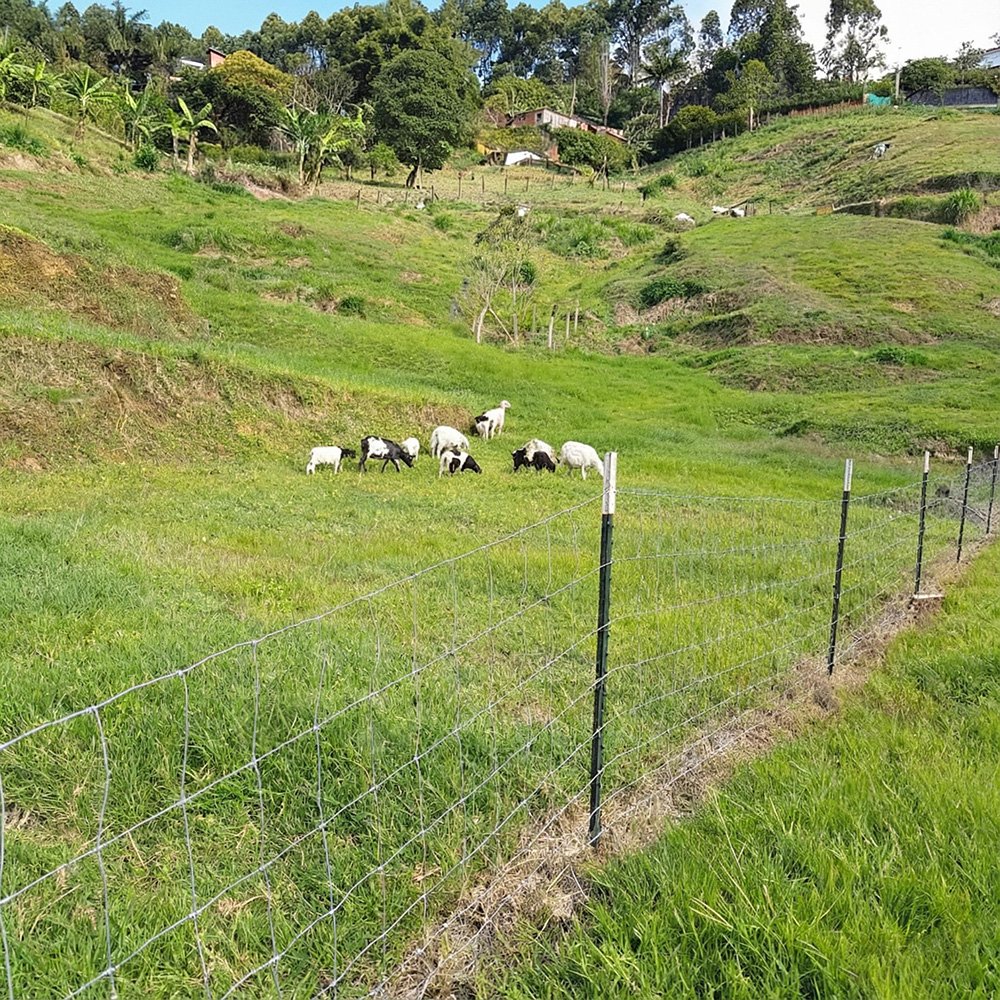

Fixed knot fence is a rigid, high-strength woven wire fencing solution made from high tensile galvanized steel wire. The locking fixed knot holds fence height and tension under heavy animal pressure, making it the preferred structure for cattle operations, game and deer exclusion, and long perimeter runs where low maintenance matters. It is widely used for cattle fencing, livestock confinement, ranch boundaries, wildlife exclusion and agricultural field protection.
Fixed knot is typically considered where buyers need a more rigid woven-wire structure for cattle, long boundary runs or higher livestock pressure. Final suitability depends on the approved design and installation conditions.
1348-6-330: 48 in height, 13 line wires, 6 in stay spacing and 330 ft roll length. Published reference wire is 12.5 gauge high tensile steel.
Published fixed-knot options include 49, 60 and 96 in reference heights, 330 ft or 660 ft roll lengths, and 12.5 or 14 gauge configurations depending on the approved design.
Class 3 galvanized or Zn-Al options can be reviewed against the order. State model, coating requirement, quantity, packing preference and destination port for an order-specific quotation.
Roll weight, pallet arrangement, container loading and formal lead time are confirmed from the final wire, coating and packing specification—not assumed from a generic product figure.
1348-6-330 means 13 horizontal line wires, 48 inch fence height, 6 inch vertical stay wire spacing and a 330 ft roll length. Other designs follow the same wire-count, height, spacing and roll-length naming logic.
Fixed knot fence uses a separate knot wire that locks the vertical and horizontal wires together, with solid full-height stay wires. It is stronger, holds fence height under pressure and allows wider post spacing. Hinge joint fence is more flexible and lower cost. See our guide comparing fixed knot vs hinge joint fence for details.
The standard is 12.5 gauge high tensile galvanized steel wire. Class 3 galvanized and Zn-Al (zinc-aluminum) coatings are available for longer outdoor corrosion resistance. 14 gauge and other gauges can be produced on request.
Common roll lengths are 660 ft and 330 ft (100 m). Longer 660 ft rolls reduce splices on large ranch projects. Other roll lengths can be customized according to order requirements.
Yes. OEM labels, private label service, pallet packing and customized export packing can be arranged for bulk orders.
Buyers are recommended to provide fence design (e.g. 1348-6-330), roll length, wire gauge, coating requirement, quantity, packing method and destination port.

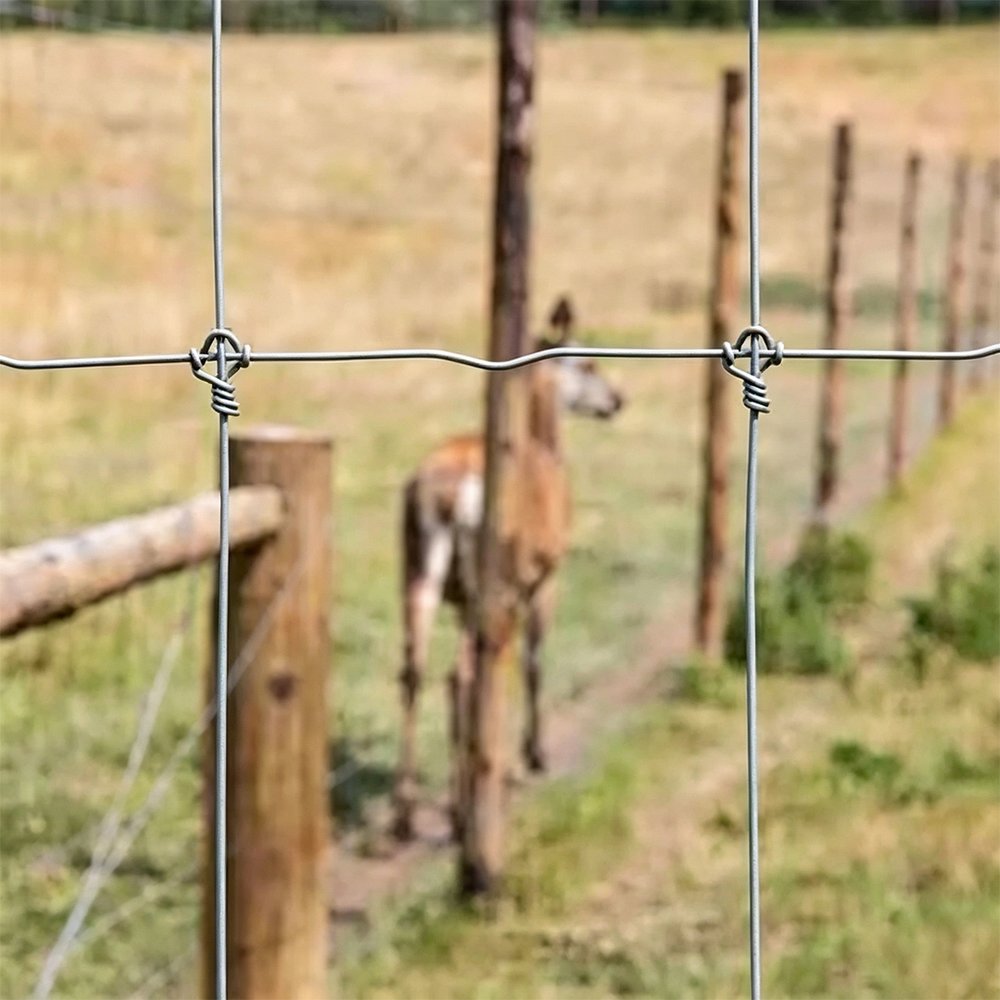

Yes. Taller designs such as 1660-6 and 2096-6 with close vertical spacing are widely used for deer, elk and game exclusion fencing because the rigid knot structure prevents animals from pushing through or climbing the fence.
