Model 842-6-330 | Height 42 in / 1067 mm | Stay Spacing 6 in / 152 mm | Roll Length 330 ft / 100.6 m
Request Factory QuoteB2B pricing is quoted after model, quantity, packing and destination review
8 line wires · 42 in high · 6 in vertical stay spacing · 330 ft roll
Available Fixed Knot Models: 842-6-330 is the default specification
Model, roll quantity and destination
Share packing requirements when they are important to your order.
Factory quotation by requirement
Wire diameter, coating, packing and production schedule are confirmed before order.
Factory-direct B2B supply · specification review before quotation · view company profile · send your project requirements

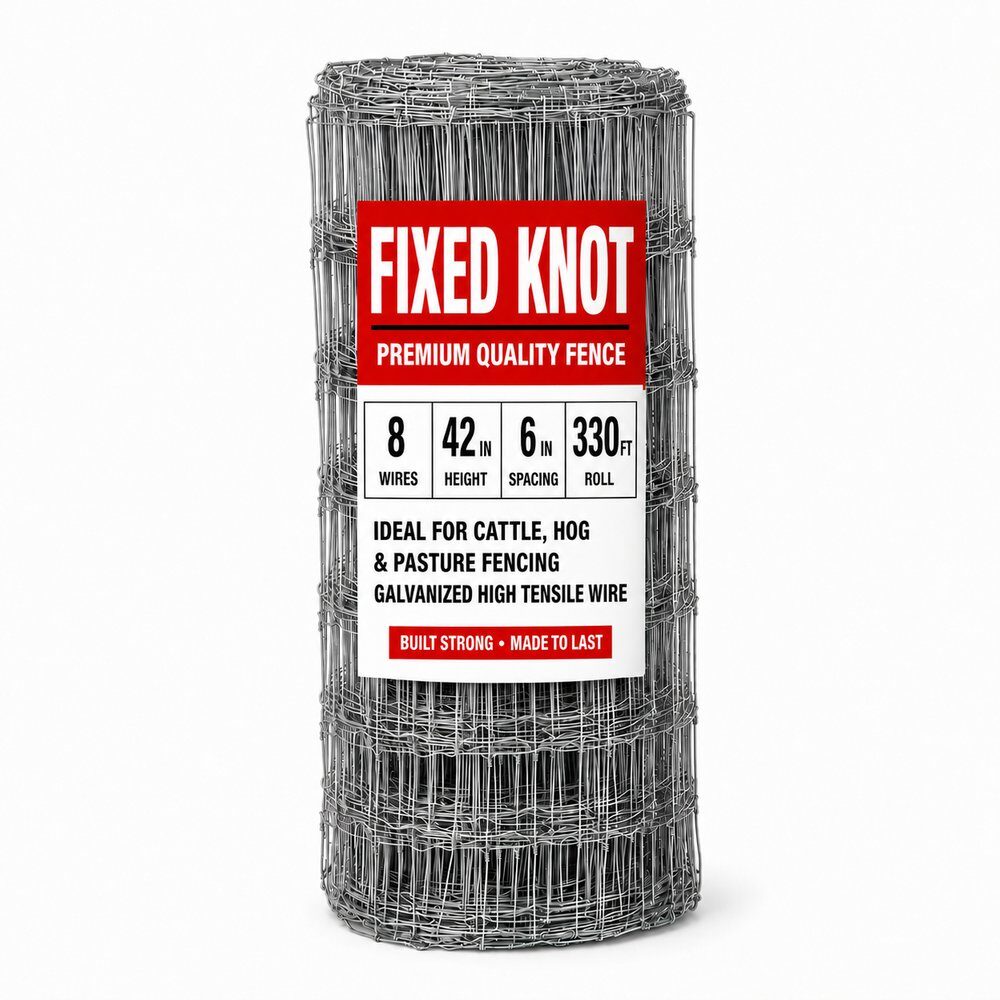

KUNYU FENCING model 842-6-330 is a 42 inch x 330 ft fixed knot hog and cattle fence for pastures, paddocks and farm boundaries. The design combines 8 horizontal line wires with 6 inch vertical stay spacing.

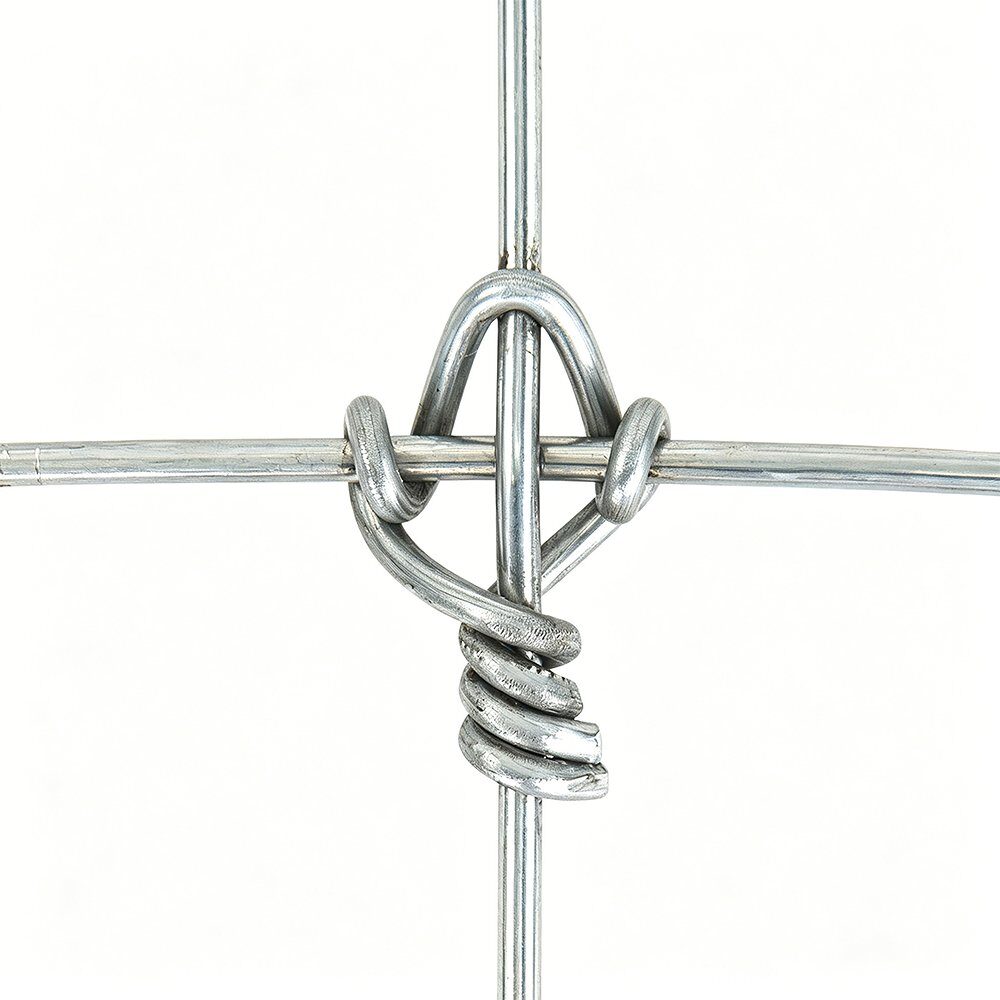

Galvanized high tensile wire is woven with fixed knots at each line and stay wire intersection. This structure helps the mesh retain its form under livestock contact when installed with suitable posts and tension.
This page is intended for importers, agricultural distributors, farm supply retailers, fence contractors and project buyers sourcing wholesale pasture fencing.
Model 842-6-330 provides a 42 in fixed knot fence layout with 8 line wires, 6 in stay spacing and a 330 ft roll. It can be evaluated by agricultural buyers, distributors and contractors communicating in English across Europe.
For a usable FOB quotation, send the model, required roll quantity, destination port and any requested wire diameter, zinc coating, packing or label requirement. These order details are confirmed against the actual specification rather than assumed on this page.
| Product Type | Fixed Knot Hog & Cattle Fence |
| Model | 842-6-330 |
| Number of Line Wires | 8 |
| Fence Height | 42 in / approximately 1067 mm |
| Vertical Stay Spacing | 6 in / approximately 152 mm |
| Roll Length | 330 ft / approximately 100.6 m |
| Knot Type | Fixed Knot |
| Wire Type | High Tensile Steel Wire |
| Surface | Galvanized |
| Primary Application | Cattle, Hog & Pasture Fencing |
| Supply Type | Manufacturer / Wholesale / Bulk Export |
| Buyer Types | Importers, distributors, farm supply retailers, fence contractors and project buyers |
| Wire Diameter | Confirmed against the requested specification |
| Zinc Coating | Confirmed against the requested specification |
| Packing | Confirmed with the order requirement |
| MOQ | Confirmed after model, quantity and packing review |
| Production Schedule | Confirmed with the formal quotation |
| Quote Basis | Model, quantity, requested specification, packing and destination port |
| Model | Line Wires | Height | Stay Spacing | Roll Length | Page Status |
|---|---|---|---|---|---|
| 842-6-330 | 8 | 42 in / 1067 mm | 6 in / 152 mm | 330 ft / 100.6 m | Default model on this page |
| 949-6-330 | 9 | 49 in / 1245 mm | 6 in / 152 mm | 330 ft / 100.6 m | View model |
| 1348-6-330 | 13 | 48 in | 6 in | 330 ft / 100.6 m | View model |
Model code reading: 842-6-330 = 8 line wires, 42 inch fence height, 6 inch vertical stay spacing and a 330 ft roll.

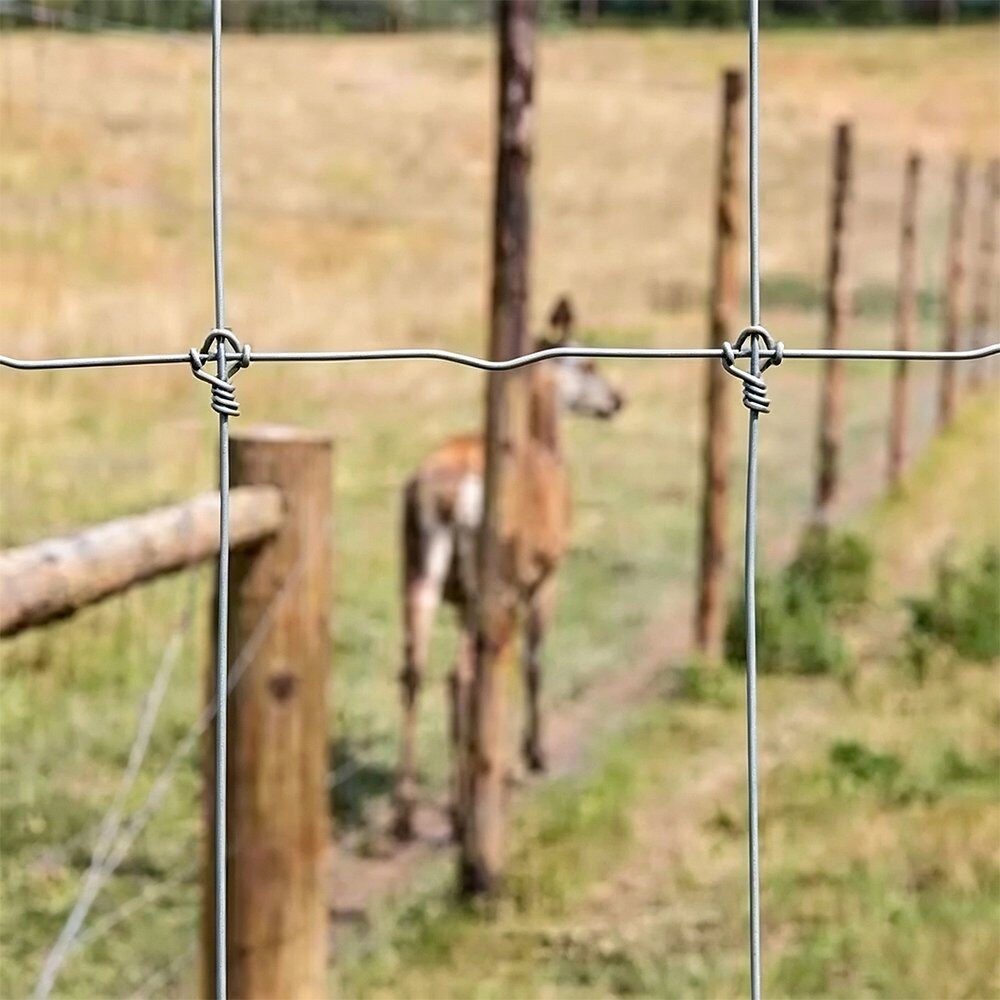

Model 842-6-330 is intended for livestock containment and agricultural perimeter projects requiring a 42 inch fixed knot woven wire fence with 6 inch stay spacing.
It identifies 8 horizontal line wires, a 42 inch fence height, 6 inch vertical stay spacing and a 330 ft roll length.
Model 842-6-330 is designed for hog, cattle and pasture fence projects. Final suitability depends on animal size and pressure, post spacing, installation tension and site conditions.
Each roll is 330 ft / approximately 100.6 m long.
It uses galvanized high tensile steel wire woven with fixed knots at the line and stay wire intersections.
These details are confirmed against the requested model specification and order requirements before quotation or order confirmation.
Please provide model 842-6-330, roll quantity, destination port and any requested wire diameter, zinc coating, packing or label requirement.
