Type Vinyl Post and Rail Fence | Style 3 Rail Horse Fence | Section 1.35 × 2.44 m | Material PVC / Vinyl
Request QuoteFactory-direct project pricing · quoted by section quantity, post layout, color, packing and destination port
PVC posts and rails · OEM / private label support · export packing · bulk project supply
Reference Configuration: confirm posts, rails and caps for each project
Posts, rails and caps quoted by layout
For importers, distributors and contractors
Private label and export packing
Bulk and mixed-container inquiry support
View company profile · download catalog · send your layout for quotation

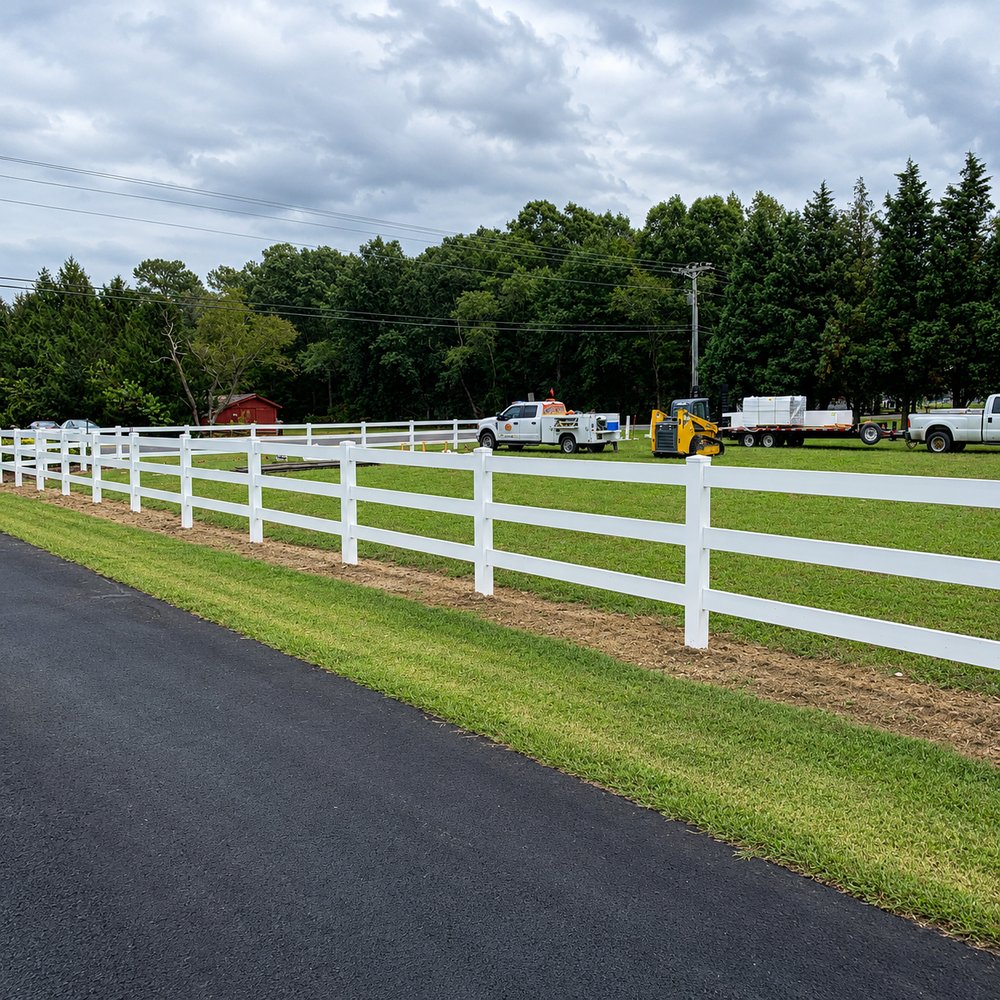

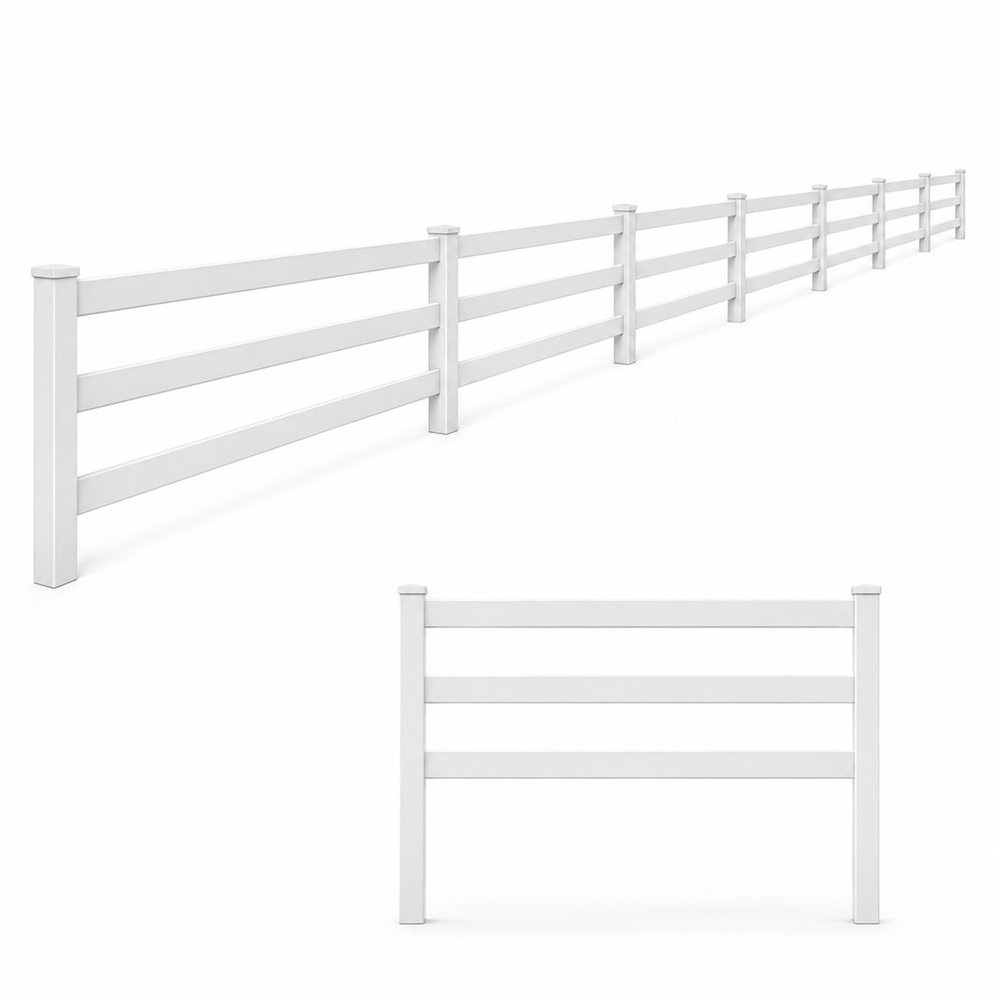

KUNYU 3 rail vinyl horse fence is a PVC post-and-rail system for horse paddocks, ranches, pastures, farms and equestrian facilities. The open three-rail layout creates a clean boundary while keeping long fence runs visually open. The white configuration shown uses modular 2.44 m sections for repeatable project planning.
The reference section is 1.35 m high × 2.44 m wide. Three horizontal rails fit into routed posts to form the fence line. Posts and post caps are listed separately in the reference specification, so buyers should provide the total run length, corners, ends and gate openings for an accurate system quotation.
For wholesale and project orders, KUNYU can prepare the component configuration, OEM labeling and export packing according to the confirmed bill of materials.
| Product Type | 3 Rail Vinyl Horse Fence / PVC Ranch Fence |
| Fence Structure | Post and Rail Fence System |
| Material | PVC / Vinyl |
| Reference Section Size | 1.35 m H × 2.44 m W (approx. 53.1 in × 8 ft) |
| Rails per Section | 3 |
| Rail Profile | 38.1 × 140 mm |
| Rail Cut Length | 2388 mm |
| Rail Wall Thickness | 2.0 mm |
| Reference Post | 127 × 127 × 1900 mm |
| Post Wall Thickness | 3.8 mm |
| Available Colors Shown | White / Gray / Brown |
| Section Components | 3 rails per section |
| Posts & Post Caps | Ordered separately unless a complete system is specified |
| System Quotation | Confirmed from total run length, corners, ends and gate openings |
| OEM Label | Available for confirmed bulk orders |
| Export Packing | Confirmed according to component mix and order quantity |
| MOQ | Confirmed according to configuration and quantity |
| Container Loading | Confirmed after final section, post and packing configuration |
| Country of Origin | China |
| Lead Time | Confirmed with the formal quotation |
| Component | Profile / Size | Wall Thickness | Quantity | Ordering Note |
|---|---|---|---|---|
| Top Rail | 38.1 × 140 × 2388 mm | 2.0 mm | 1 per section | Included in section |
| Middle Rail | 38.1 × 140 × 2388 mm | 2.0 mm | 1 per section | Included in section |
| Bottom Rail | 38.1 × 140 × 2388 mm | 2.0 mm | 1 per section | Included in section |
| Post | 127 × 127 × 1900 mm | 3.8 mm | By layout | Order separately |
| Post Cap | Matched to post | — | By post quantity | Order separately |

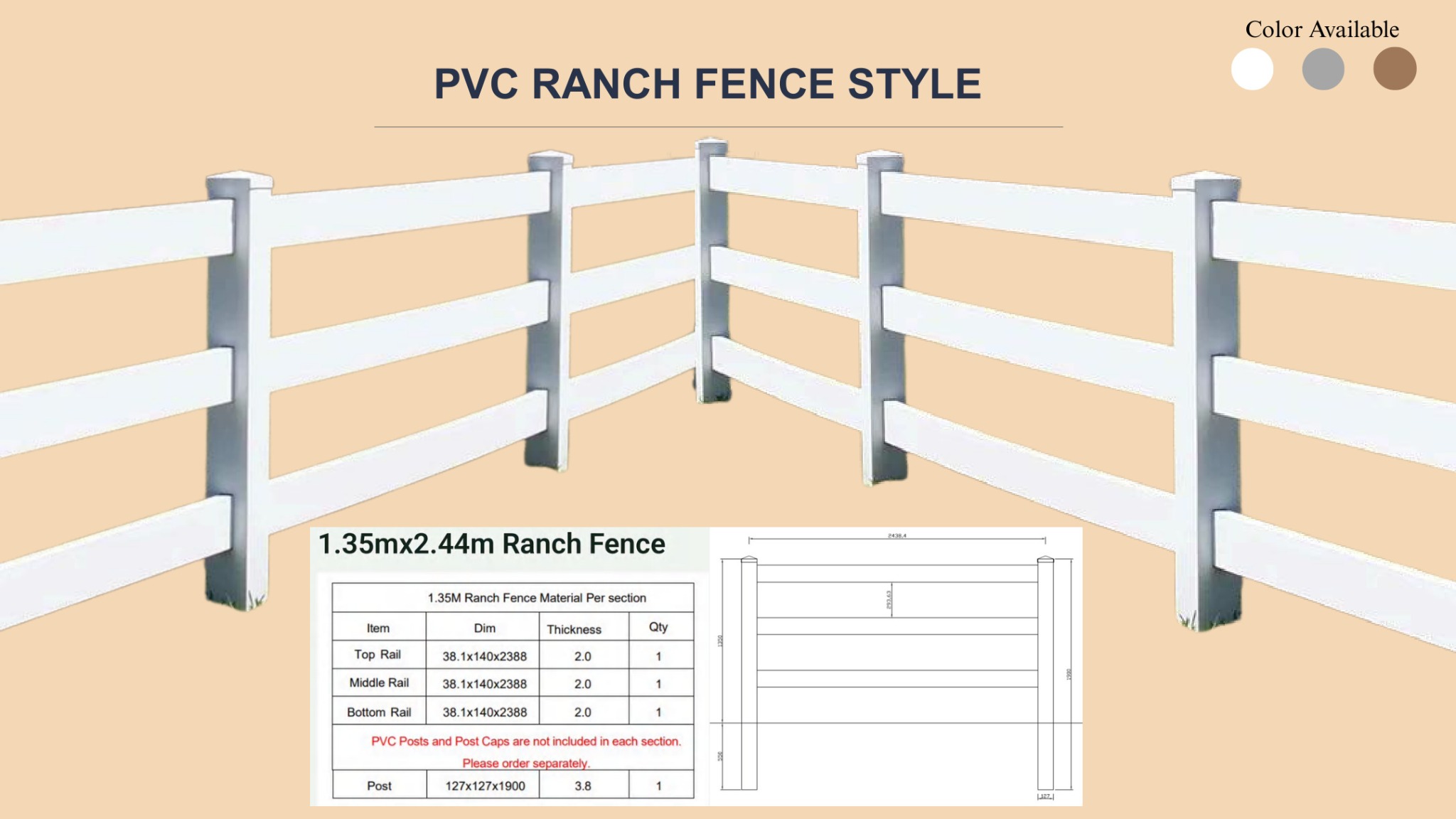

Reference dimensions are taken from the supplied product sheet. Final component quantities and packing are confirmed in the quotation.

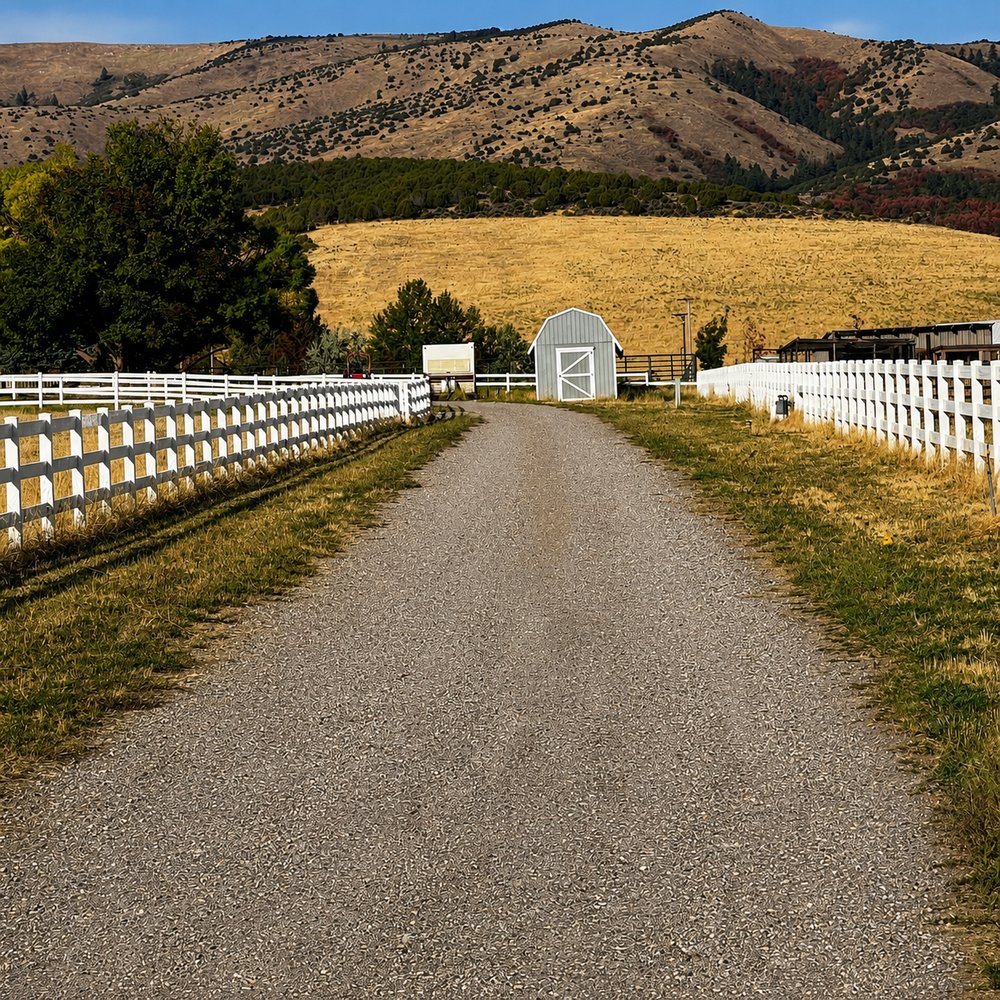

This 3 rail vinyl ranch fence is designed for open agricultural and equestrian boundaries where buyers want a clean post-and-rail appearance and modular project supply.
The supplied specification sheet shows 1.35 m high × 2.44 m wide, approximately 53.1 inches × 8 feet.
One section uses three PVC rails. Posts and post caps are ordered separately unless the quotation specifically states a complete system.
The reference rails are 38.1 × 140 × 2388 mm with a 2.0 mm wall thickness. The post is 127 × 127 × 1900 mm with a 3.8 mm wall thickness.
The supplied sheet shows white, gray and brown. Final color availability is confirmed in the quotation.

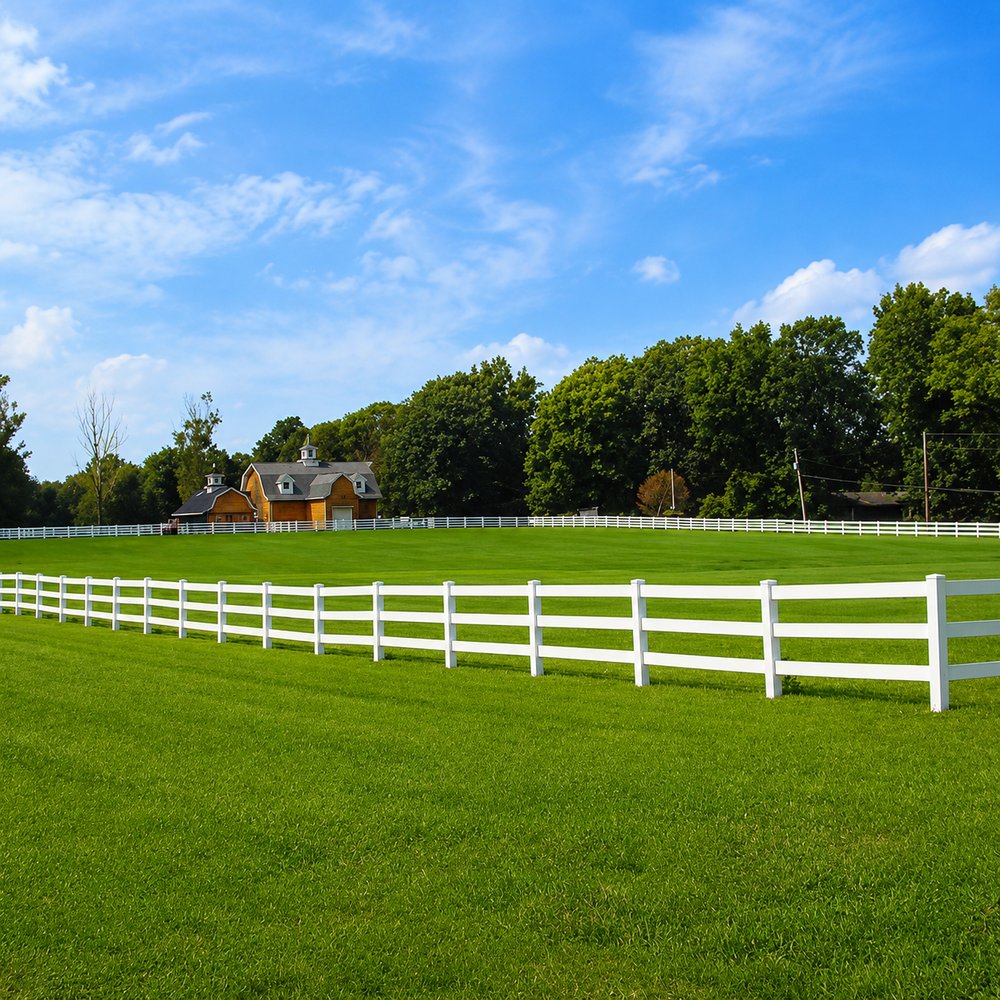

Yes. The three-rail layout is intended for paddocks, ranch boundaries, pasture divisions, farms and equestrian properties.
Provide total fence length, section height, corner and end post quantities, gate openings, color, packing or OEM label requirements and destination port.
Yes. OEM labels and export packing can be arranged after the configuration and quantity are confirmed.
