Structure Fixed knot | Design height 1500 mm | Supply Made to order

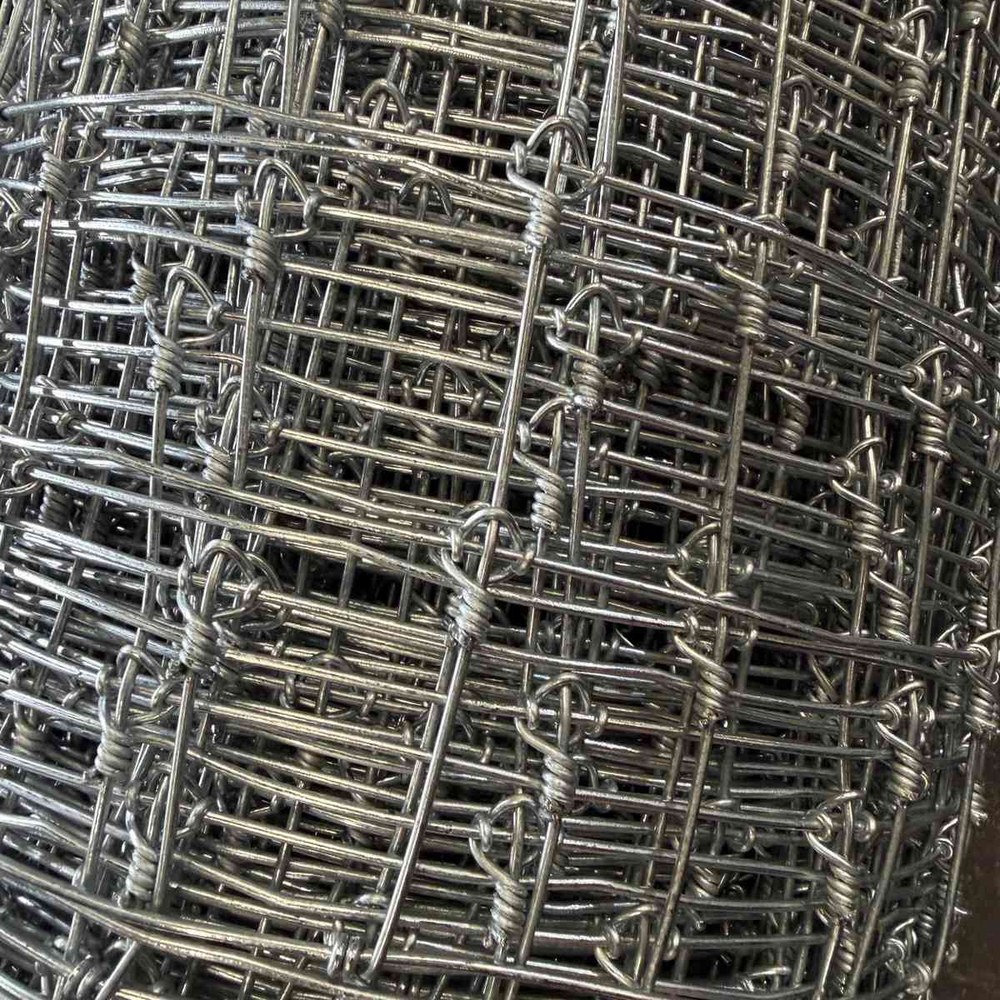

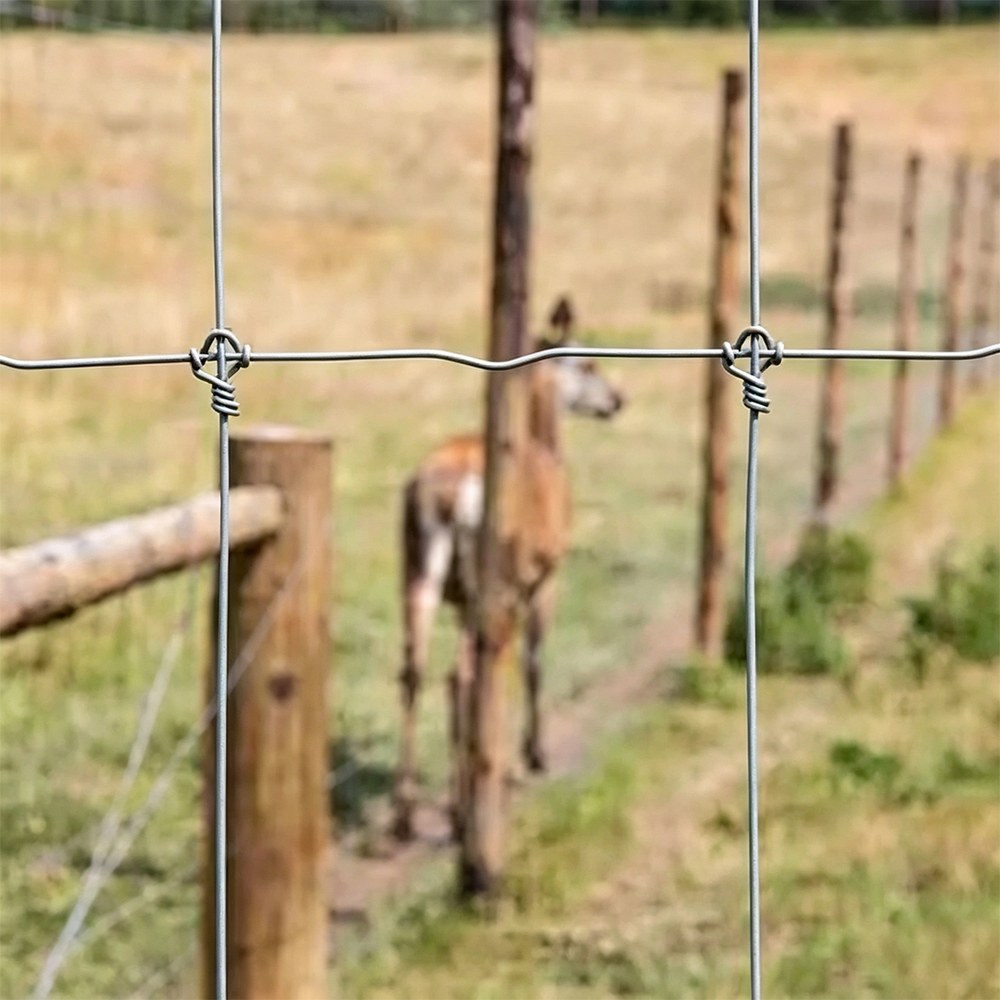

Fixed knot fence roll detail. Product family reference; dimensions follow the selected layout.
1.5 m Fixed Knot Farm Fence
KUNYU FENCING offers a 1.5 m fixed knot fence layout with 10, 11 horizontal line-wire options for metric procurement specifications. Compare the opening schedules below, then confirm stay spacing, wire diameters, coating and roll length for a quotation.
Request QuoteSpecify the opening layout, wire requirements and roll length
Your selected height, wire count and opening schedule are included in the enquiry.
1500 mm Fixed Knot Opening Schedules
Line wires run horizontally. The schedule gives the vertical distance between each pair of line wires, from bottom to top. Stay spacing is the horizontal distance between upright wires and is specified separately.
| Layout ref. | Height | Line wires | Vertical openings, bottom → top | Drawing | Enquiry |
|---|---|---|---|---|---|
| R17 | 1500 mm | 10 | 150×3+175×6 mm | View diagram for 10 line wires / 1500 mm | Quote 10 line wires / 1500 mm |
| R20 | 1500 mm | 11 | 100×1+125×2+150×3+175×4 mm | View diagram for 11 line wires / 1500 mm | Quote 11 line wires / 1500 mm |
Dimensions are nominal design values. Agree production tolerances in the order drawing. Layout references identify these opening schedules; they do not encode wire grade, coating or roll length.
Choosing the 1500 mm Layout
Two layouts share a 1500 mm height. The 10-line schedule uses 150 and 175 mm openings; the 11-line schedule adds 100 and 125 mm openings lower in the fence. Compare the actual opening schedule when evaluating quotations. The damaged source model codes are not used as public SKUs.
1500 mm is approximately 59.06 inches. A 60 inch design is 1524 mm and a 61 inch design is 1549.4 mm.

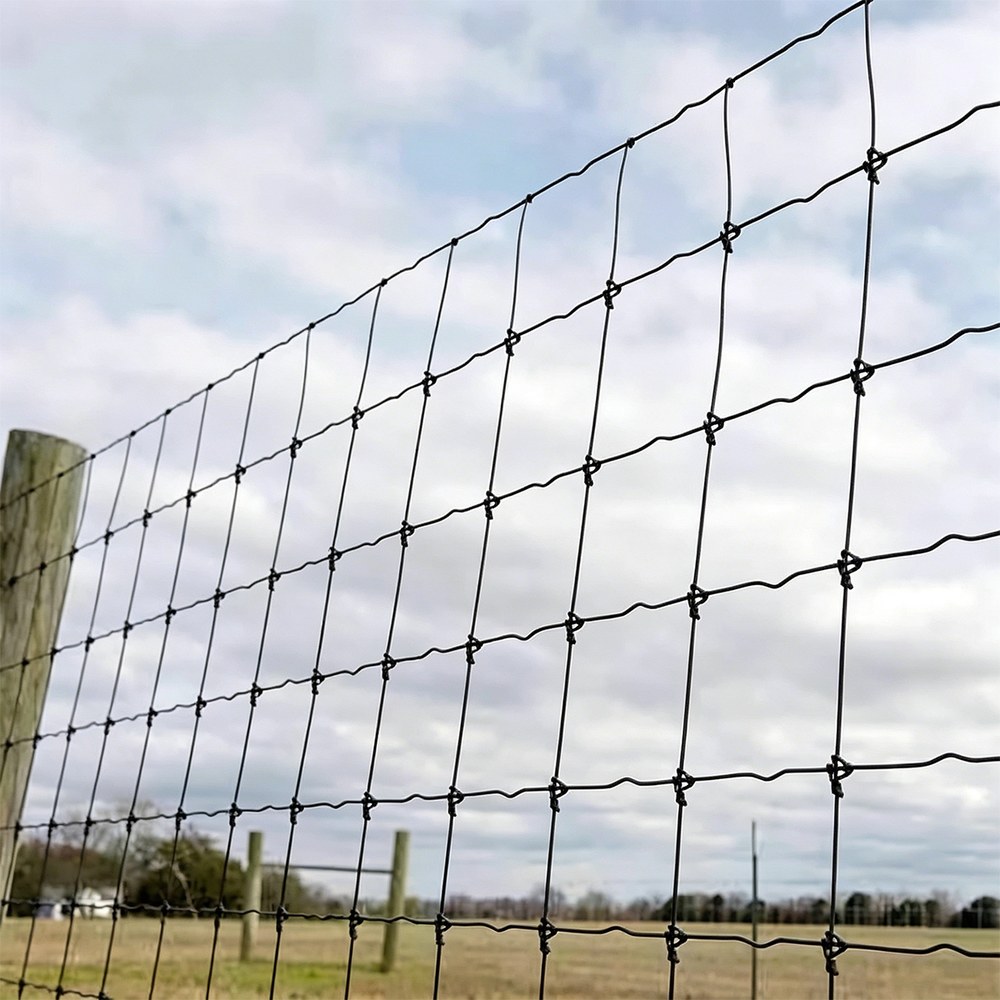

Farm perimeter and distributor specification comparisons. Confirm the complete fence design, animal species and site conditions before selecting a layout.
48 in fixed knot cattle fence · 96 in fixed knot deer fence · Compare knot types
Wire, coating, packing and order details

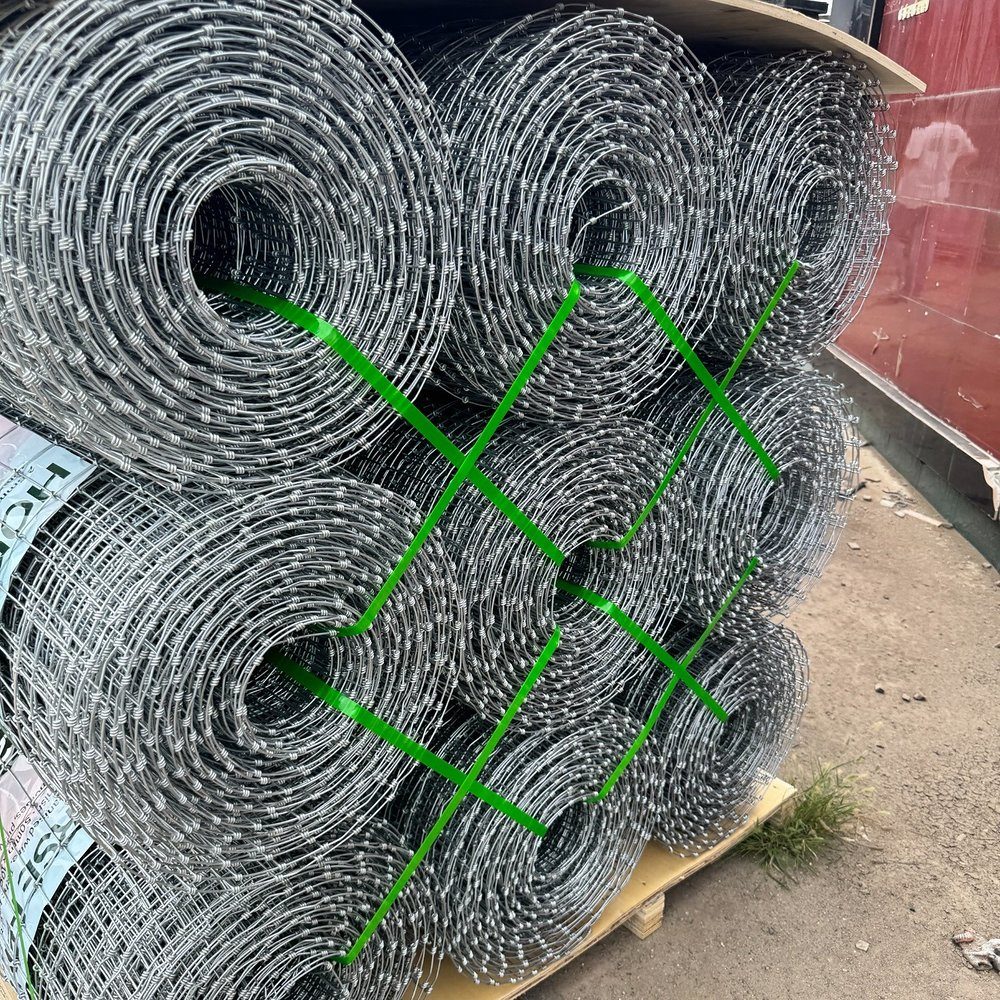

Specify line, edge, stay and knot wire diameters separately, together with the material, tensile requirement and coating. Request your preferred roll length, quantity, label and packing method so that quotations use the same basis.

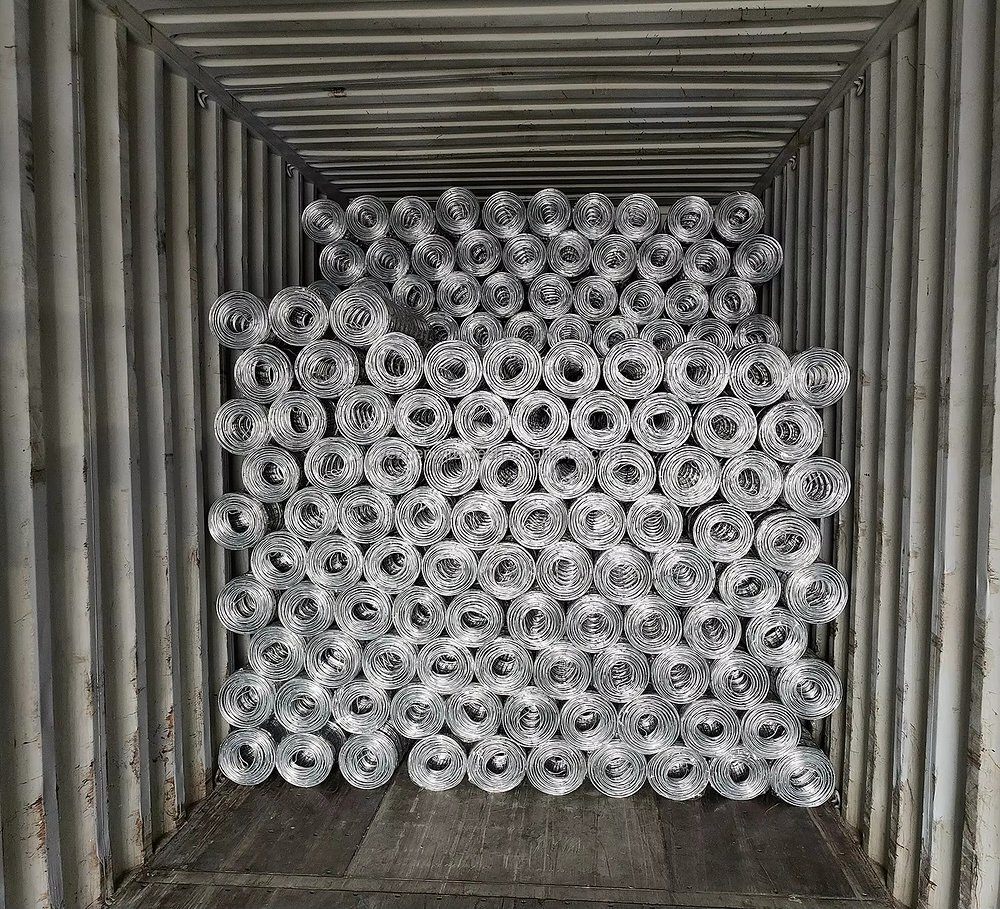

Roll weight, packed dimensions, MOQ, lead time and container loading are confirmed for the selected configuration. Include your destination port and any sample or inspection requirements.
Read the container loading guide · Factory and company information
Frequently Asked Questions
What height and line-wire count does this page cover?
It covers 1500 mm fixed knot fence layouts with 10, 11 horizontal line-wire options. The opening schedules are listed above.
Is this an exact imperial-size equivalent?
1500 mm is approximately 59.06 inches. A 60 inch design is 1524 mm and a 61 inch design is 1549.4 mm.
What is the difference between line spacing and stay spacing?
The opening schedule lists the vertical distances between horizontal line wires. Stay spacing is the horizontal distance between upright stay wires and is specified separately.
Is the coating or wire diameter fixed by the model?
No. Confirm line, edge, stay and knot wire requirements, tensile class and coating in the order specification.
Can I order a 100 m or 330 ft roll?
Request the length required by your market. Availability is reviewed for the configuration. A 100 m roll and a 330 ft roll are not exactly equal: 330 ft is 100.584 m.
What do you need for a quotation?
Send height, line-wire count, opening schedule, stay spacing, wire and coating requirements, roll length, quantity, packing preference and destination port.
