Post spacing is the single biggest lever on fence installation cost after the fence roll itself: every extra foot of spacing removes hundreds of posts per mile. But spacing that is too wide for the wire grade leads to sagging mesh and escaped livestock. The right spacing depends on three things: the fence wire grade, the animal pressure and the terrain.
1. Recommended T-Post Spacing by Fence Type
| Fence Type | Recommended Spacing | Notes |
|---|---|---|
| Standard hinge joint field fence (low carbon) | 8–10 ft (2.5–3 m) | Softer wire needs more support to avoid sag |
| High tensile hinge joint fence | 10–12 ft (3–3.5 m) | Stronger wire carries load between posts |
| High tensile fixed knot fence | 15–20 ft (4.5–6 m) | Rigid knots + high tensile wire allow the widest spacing |
| Barbed wire (5–6 strand) | 12–16.5 ft (3.5–5 m) | One rod (16.5 ft) is the classic rangeland standard |
| Horse fence (mesh) | 8–10 ft (2.5–3 m) | Closer spacing improves safety and appearance |
| Garden / light welded fence | 6–8 ft (1.8–2.5 m) | Light posts and mesh need closer support |

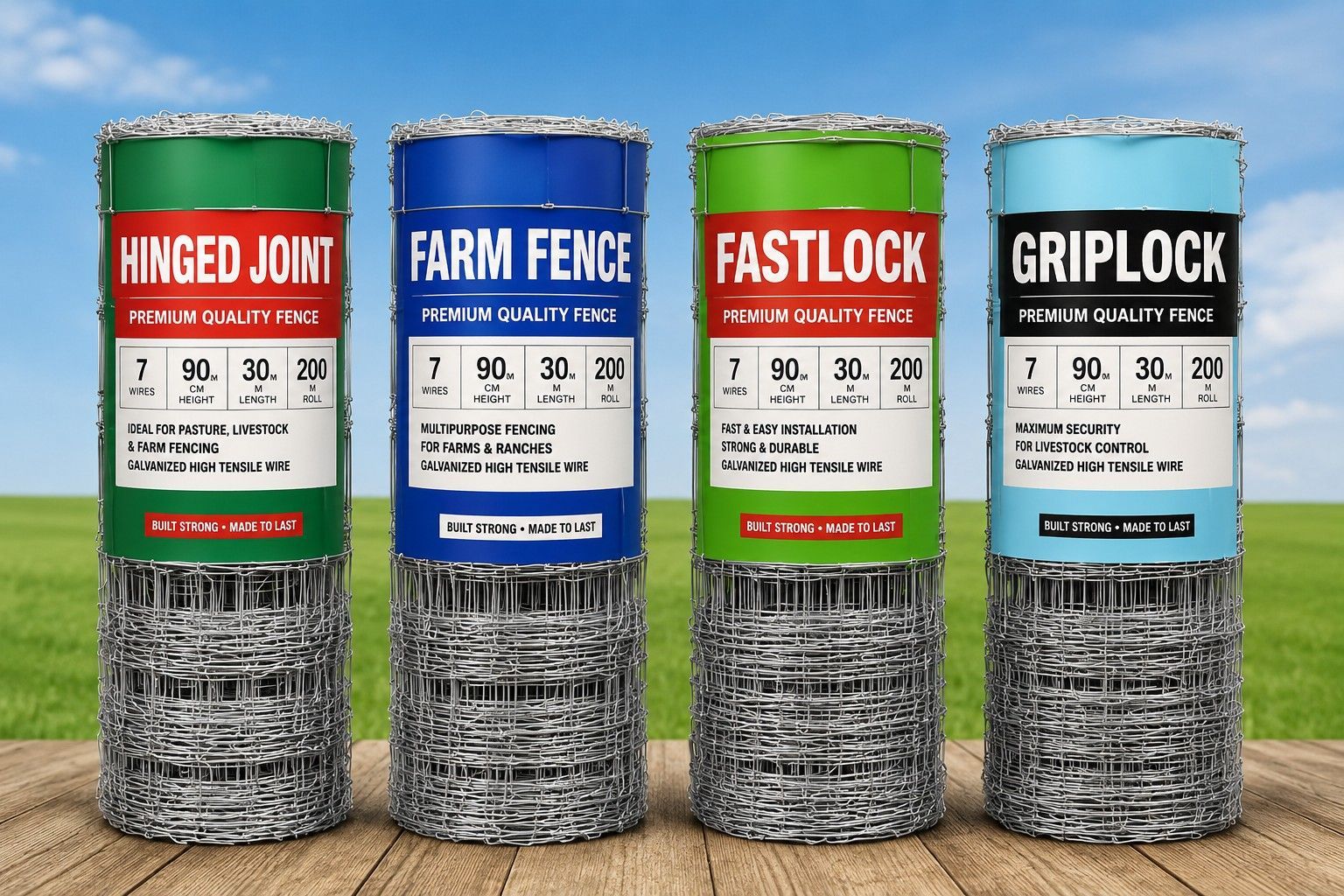

Learn the difference between wire grades in our fixed knot vs hinge joint comparison, and see size options in the hinge joint fence sizes guide.
2. Adjusting Spacing for Animal Pressure and Terrain
- Cattle and bulls: tighten spacing to 8 ft on feeding areas, corrals and anywhere animals crowd the fence
- Sheep and goats: 10 ft is usually fine; goats climbing the fence argue for closer posts
- Hilly or uneven land: add posts at every dip and rise so the fence follows the ground; a post at the bottom of each dip resists uplift
- Sandy or wet soil: tighter spacing compensates for weaker post holding
- Snow load or floodplains: wider spacing with high tensile wire lets the fence flex and recover
3. How Many T Posts per Roll of Field Fence?
A standard field fence roll is 330 ft (100 m). Divide roll length by spacing and round up:
| Post Spacing | Posts per 330 ft / 100 m Roll | Posts per 200 m Roll |
|---|---|---|
| 8 ft (2.5 m) | ~41 | ~80 |
| 10 ft (3 m) | ~33 | ~66 |
| 12 ft (3.5 m) | ~27 | ~57 |
| 16.5 ft (5 m) | ~20 | ~40 |
| 20 ft (6 m) | ~16 | ~33 |
This ratio is the standard way distributors bundle products: for example, one 330 ft roll of hinge joint fence at 10 ft spacing sells with roughly 33 steel T posts and a bag of wire clips.
4. How Many Posts per Mile / per Kilometer?
| Post Spacing | Posts per Mile (5,280 ft) | Posts per Kilometer |
|---|---|---|
| 8 ft (2.5 m) | ~660 | ~400 |
| 10 ft (3 m) | ~528 | ~333 |
| 12 ft (3.5 m) | ~440 | ~286 |
| 16.5 ft (5 m) | ~320 | ~200 |
| 20 ft (6 m) | ~264 | ~167 |
The math shows why high tensile fixed knot fence often wins on installed cost: moving from 10 ft to 16.5 ft spacing removes about 200 posts per mile — post cost, freight and driving labor all drop together. See our high tensile fixed knot cattle fence for a product designed for wide spacing.
5. Corners, Ends and Bracing: Where T Posts Are Not Enough
T posts are line posts. The stretching tension of a fence line — several hundred kilograms with high tensile wire — is carried by the corner and end assemblies:
- Corner / end posts: treated wood (typically 4–6″ diameter) or steel pipe, set 3–4 ft deep
- Brace assemblies: H-brace or diagonal brace within 8 ft of each corner post
- Gate posts: sized for gate weight, always braced
- Long straight runs: add a braced line assembly every 400 m (1/4 mile) for re-tensioning
6. Installation Quick Checklist
- Set and brace all corner, end and gate posts first
- Stretch a guide wire between corners to keep the line straight

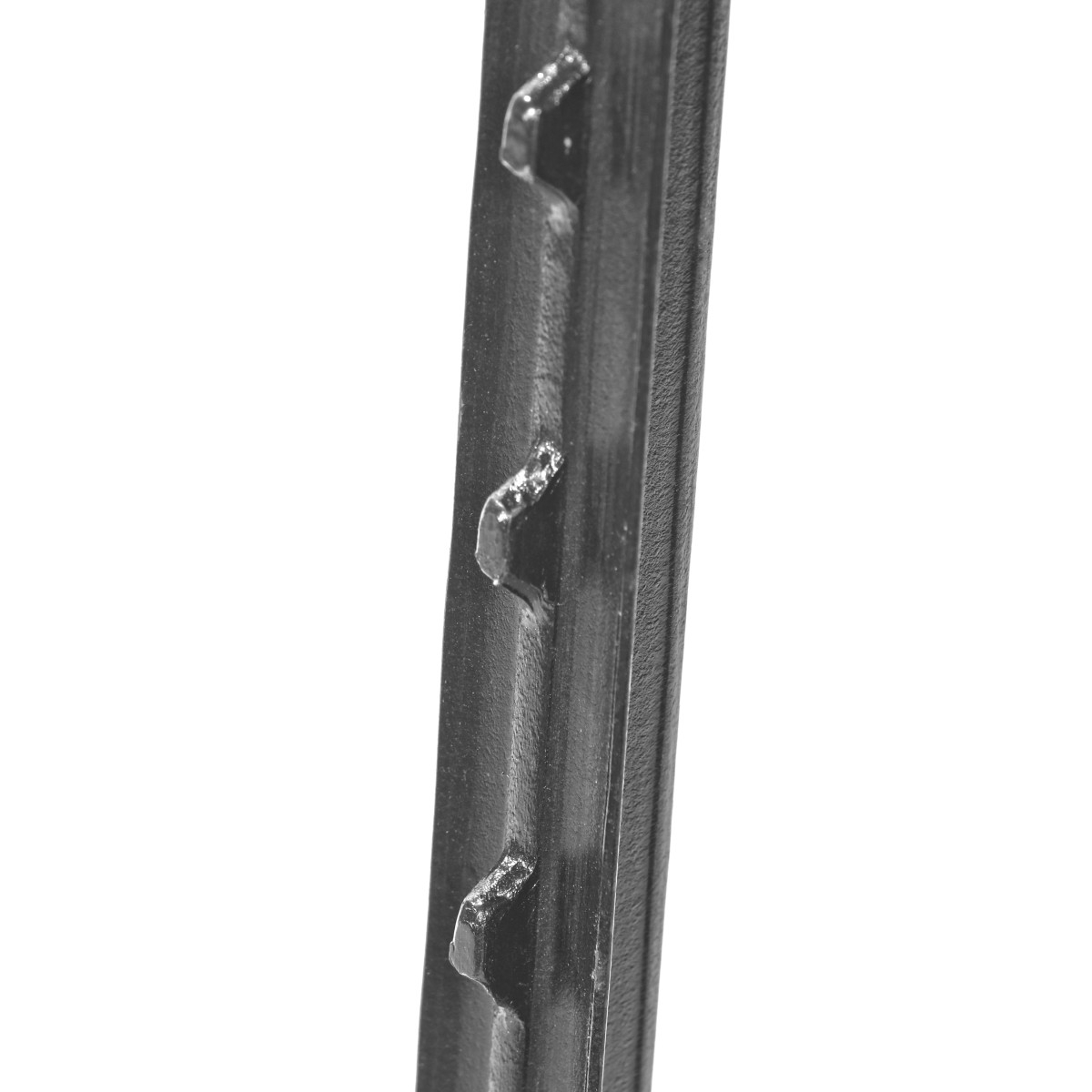

- Drive T posts to the anchor plate depth (plate fully buried), studs facing the animal side
- Stretch the fence from the braced end, attach to posts with wire clips — top, bottom and alternating middle wires
- On dips and rises, add posts so the bottom wire follows the ground
For post length, weight and coating selection, see how to choose the right T post. Deciding between post profiles? Read U post vs T post.
7. FAQ About T-Post Spacing
1. How far apart should T posts be for field fence?
8–12 ft (2.5–3.5 m) for standard hinge joint field fence: 8 ft for cattle pressure, 10 ft as the default, 12 ft for low-pressure boundaries. High tensile fixed knot fence allows 15–20 ft.
2. How many T posts per 330 ft roll?
About 33 posts at 10 ft spacing, 41 at 8 ft, or 27 at 12 ft — plus braced wood posts at corners, ends and gates.
3. How many posts per mile?
About 528 at 10 ft spacing, 660 at 8 ft, 440 at 12 ft, or 320 at 16.5 ft (one rod) spacing.
4. What spacing for barbed wire fence?
12–16.5 ft is traditional; up to 16–20 ft with high tensile barbed wire and strong corner bracing on flat land.
5. Why does high tensile fence allow wider spacing?
High tensile wire holds tension and springs back after impact, so the wire carries more load between posts — cutting post count and labor by 30–50%.
6. Can corners use T posts?
No. Corners, ends and gates need braced wood or pipe posts — they carry the full stretching tension of the fence line.
