Models C11–C21 | Dimensions mm / m | Supply Bulk enquiries

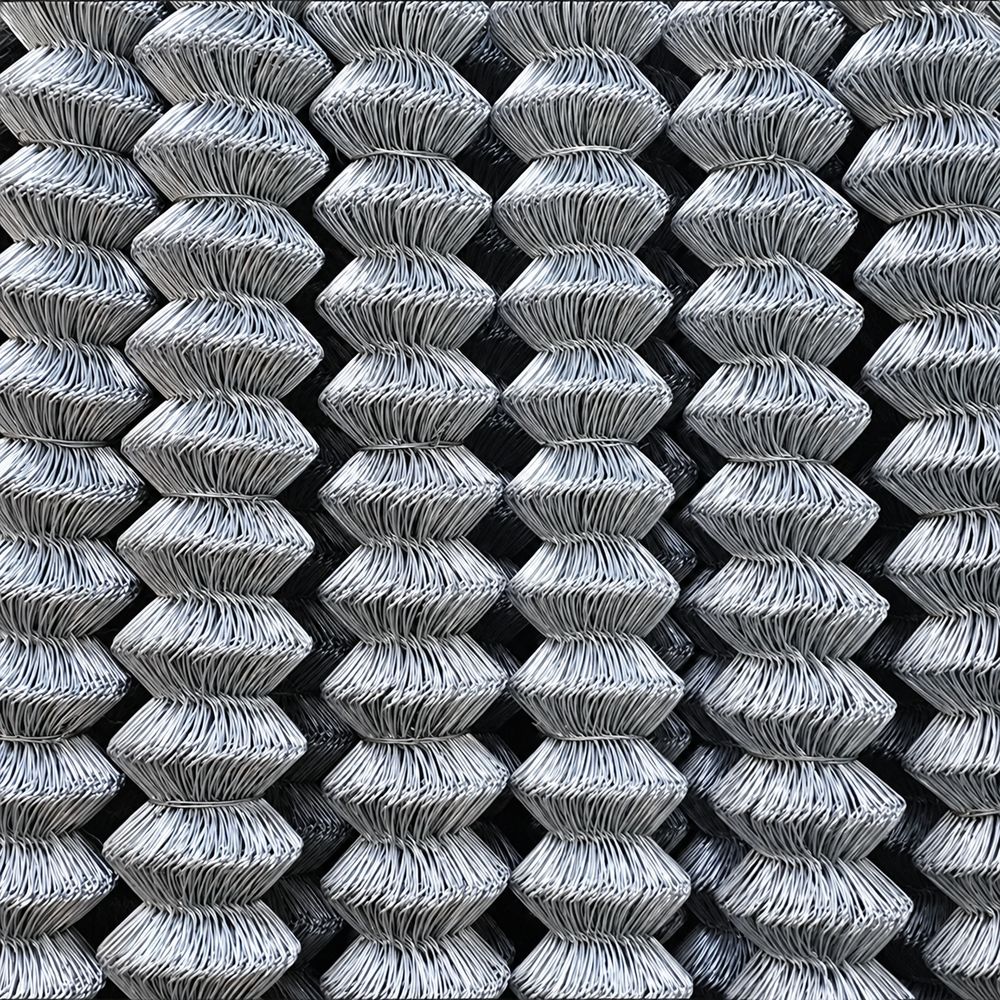

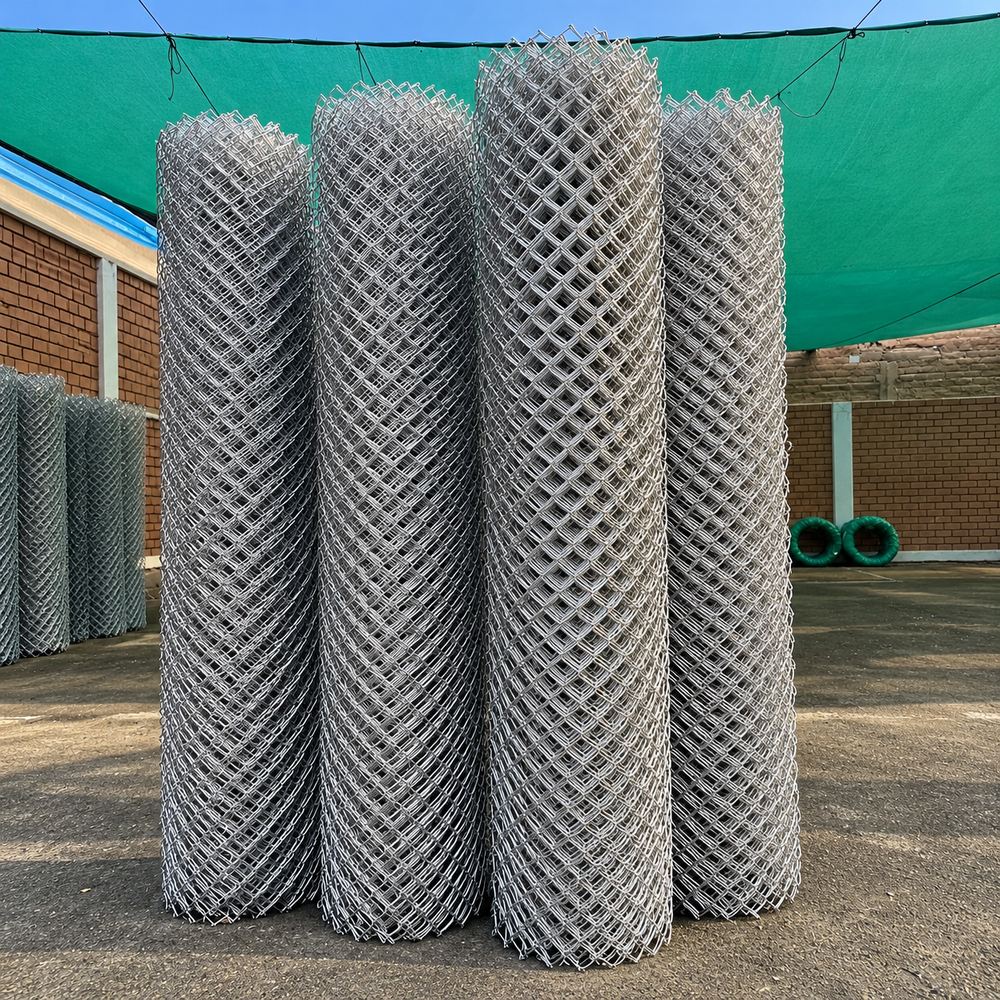

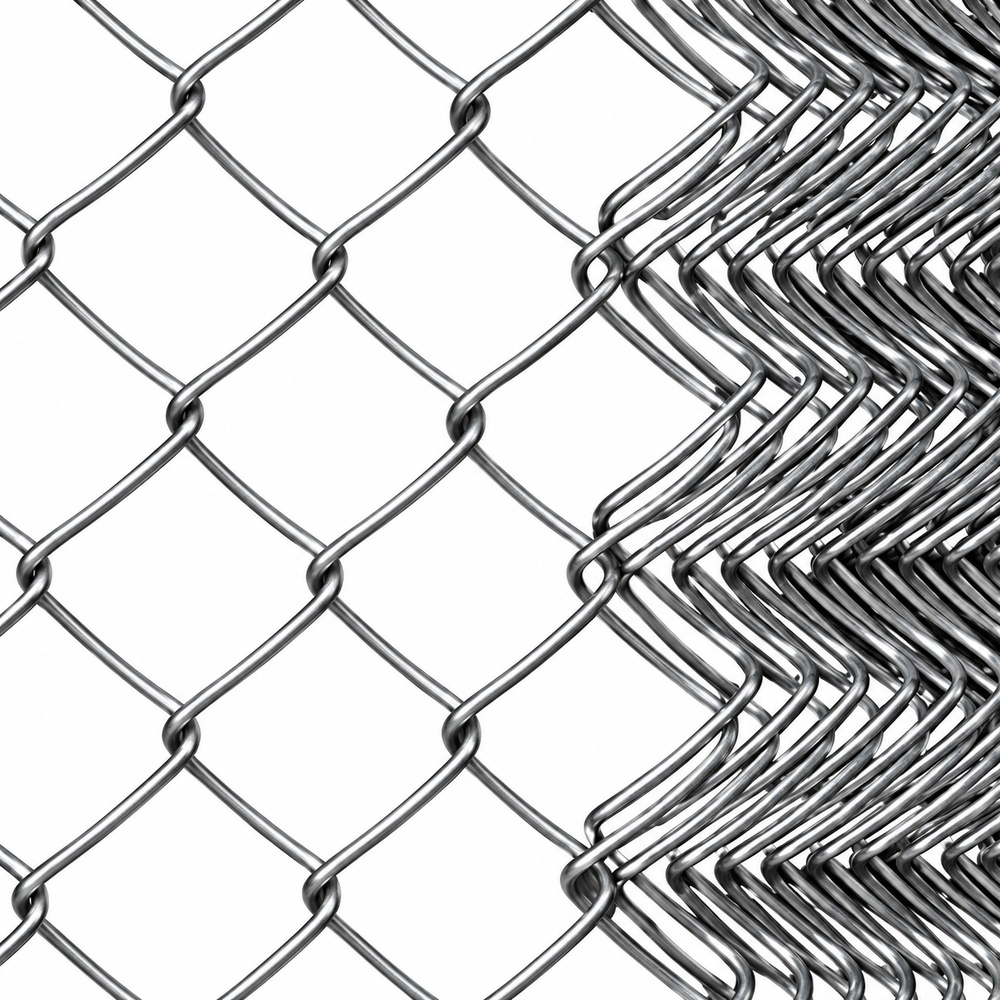

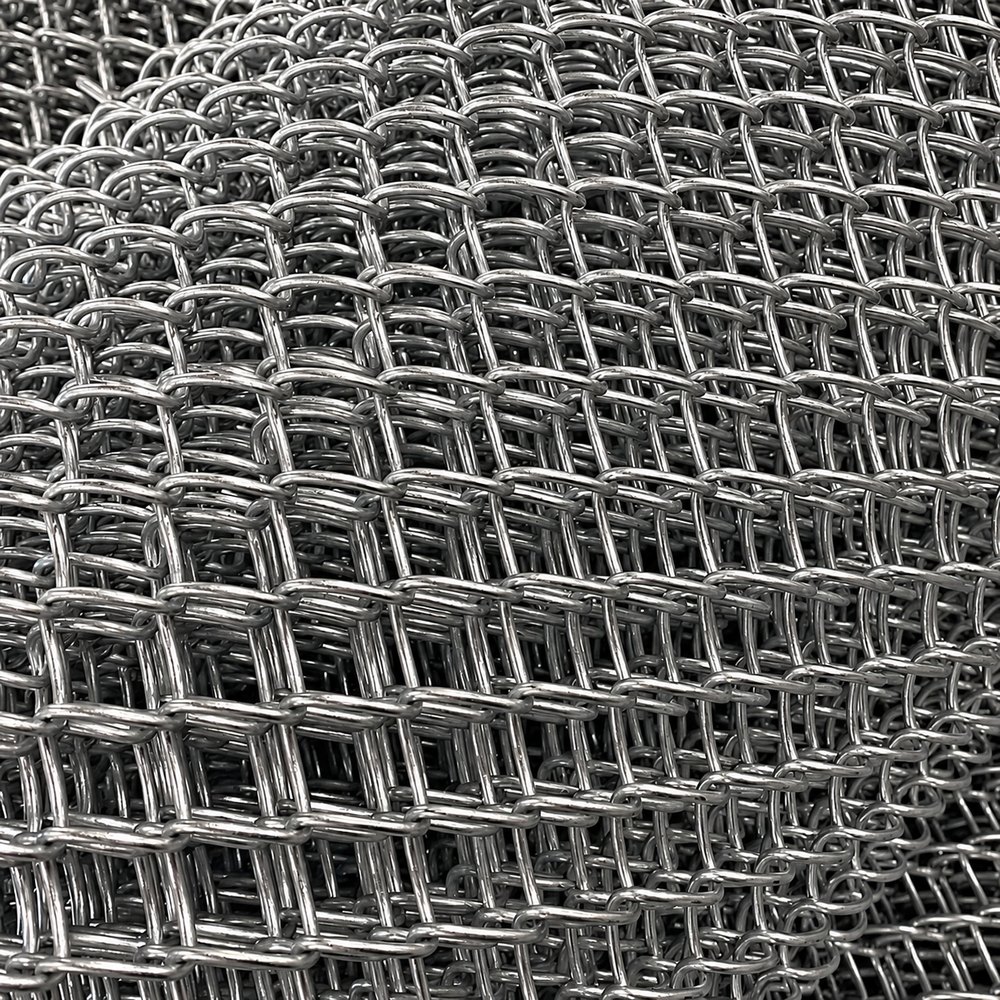

Illustrative chain link mesh views. Select dimensions from the model table and specify the required finish in your enquiry.
Metric Chain Link Fence — C11–C21 Specifications
Compare 11 metric chain link mesh models for wholesale and project enquiries. Choose the exact combination of wire diameter, mesh opening, length and height from the table below.
Request a Model-Based QuoteSpecify finish, quantity, packing and delivery terms
MOQ: 1 × 20GP container · Mixed-model allocation by quotation
- Listed wire diameters: 2, 2.5, 3, 4, 4.5 and 5 mm.
- Listed mesh openings: 40, 50, 60 and 70 mm.
- Listed heights: 1.5, 1.8, 2 and 2.5 m.
- Length: 2.5 or 3 m, depending on the model.
- Use each model’s complete row; these values are not interchangeable options.
Choose a model to include its dimensions in your email or WhatsApp enquiry.
Request Bulk QuoteEnquire on WhatsAppModel specifications · Packing & business · Compare the full range
C11–C21 Chain Link Mesh Specifications
Dimensions below belong to the named model. The Length column is retained as a model dimension; specify whether your order requires rolled fabric or cut lengths when requesting a quotation.
| Model | Wire diameter | Mesh opening | Length | Height | Quotation |
|---|---|---|---|---|---|
| C11 | 2 mm | 40 × 40 mm | 3 m | 2.5 m | Enquire C11 |
| C12 | 2.5 mm | 50 × 50 mm | 3 m | 2 m | Enquire C12 |
| C13 | 3 mm | 50 × 50 mm | 3 m | 1.8 m | Enquire C13 |
| C14 | 3 mm | 60 × 60 mm | 3 m | 2.5 m | Enquire C14 |
| C15 | 4 mm | 50 × 50 mm | 3 m | 2 m | Enquire C15 |
| C16 | 4 mm | 60 × 60 mm | 2.5 m | 1.8 m | Enquire C16 |
| C17 | 4 mm | 70 × 70 mm | 3 m | 2.5 m | Enquire C17 |
| C18 | 4.5 mm | 50 × 50 mm | 3 m | 2 m | Enquire C18 |
| C19 | 4.5 mm | 60 × 60 mm | 2.5 m | 1.5 m | Enquire C19 |
| C20 | 4.5 mm | 70 × 70 mm | 3 m | 2 m | Enquire C20 |
| C21 | 5 mm | 50 × 50 mm | 3 m | 1.8 m | Enquire C21 |
Specify the wire measurement basis, mesh measurement method and dimensional tolerances with the order. For coated wire, distinguish the steel core diameter from the finished coated diameter. Finish, coating thickness and edge construction are agreed separately.
Choose a Model by Wire and Mesh
2–3 mm wire
C11–C14 cover the listed 2, 2.5 and 3 mm wire configurations. C13 and C14 use the same 3 mm wire but different mesh openings and heights.
4 mm wire
C15–C17 provide three separate 4 mm wire configurations. Compare their 50, 60 and 70 mm openings together with the specified length and height.
4.5–5 mm wire
C18–C20 list 4.5 mm wire configurations; C21 lists 5 mm wire with 50 mm mesh and 1.8 m height. Wire size alone does not establish a security rating.
Project and Distributor Enquiries
For property boundaries, commercial sites or distributor SKU programmes, send the site requirements alongside the model number. Mesh dimensions alone do not define a complete fence system. Review posts, rails, connections, gates and any required performance criteria separately.
Packaging & Wholesale Supply
Order details
| Minimum order | 1 × 20GP container; mixed-model quantities reviewed with the quotation |
|---|---|
| Finish and colour | State the required finish; availability and coating specification are confirmed per model |
| Supply form | Confirm rolled fabric or cut lengths and the dimensions of each supplied unit |
| Components | State separately whether posts, rails, gates or fittings are required |
Packing and delivery
| Packaging | Agree protective wrapping, ties, labels and any pallet requirements after confirming supply form |
|---|---|
| OEM labels | Provide model code, label artwork, barcode and destination requirements |
| Weight and loading | Use the approved unit weight, package dimensions and packing arrangement; no fixed loading count is implied |
| Price and lead time | Confirmed in the written quotation for the selected model, coating, quantity and named delivery terms |
Metric Models and Imperial Roll Specifications
C11–C21 are separate from the 50 ft enquiry configurations. For example, 1.8 m is not exactly 6 ft (1.8288 m), and a listed 3 m length is not 50 ft (15.24 m). Keep the ordered units and tolerances explicit.
For imperial requirements, compare the pages below and request confirmation of availability and production specifications. Do not substitute a C-series model solely because one dimension is similar.
Ordering Questions
Can I combine dimensions from different rows?
The table defines 11 separate models. Send any different combination as a separate specification enquiry for review rather than treating it as an existing C-series model.
Does the model number specify galvanized or PVC coated wire?
No coating is assigned by this dimensional table. Include the required finish and colour, wire diameter basis, coating requirement and edge construction in the enquiry.
Is C14 2.5 m high?
Yes. C14 is listed with 3 mm wire, 60 × 60 mm mesh opening, 3 m length and 2.5 m height.
How do I request several models in one order?
List each model and quantity separately, then provide the finish, supply form, packing and destination. Mixed-container allocation and loading are confirmed from the approved packed dimensions and weights.
