Metric height 900 mm | Line wires 6–10 | Construction Hinge joint

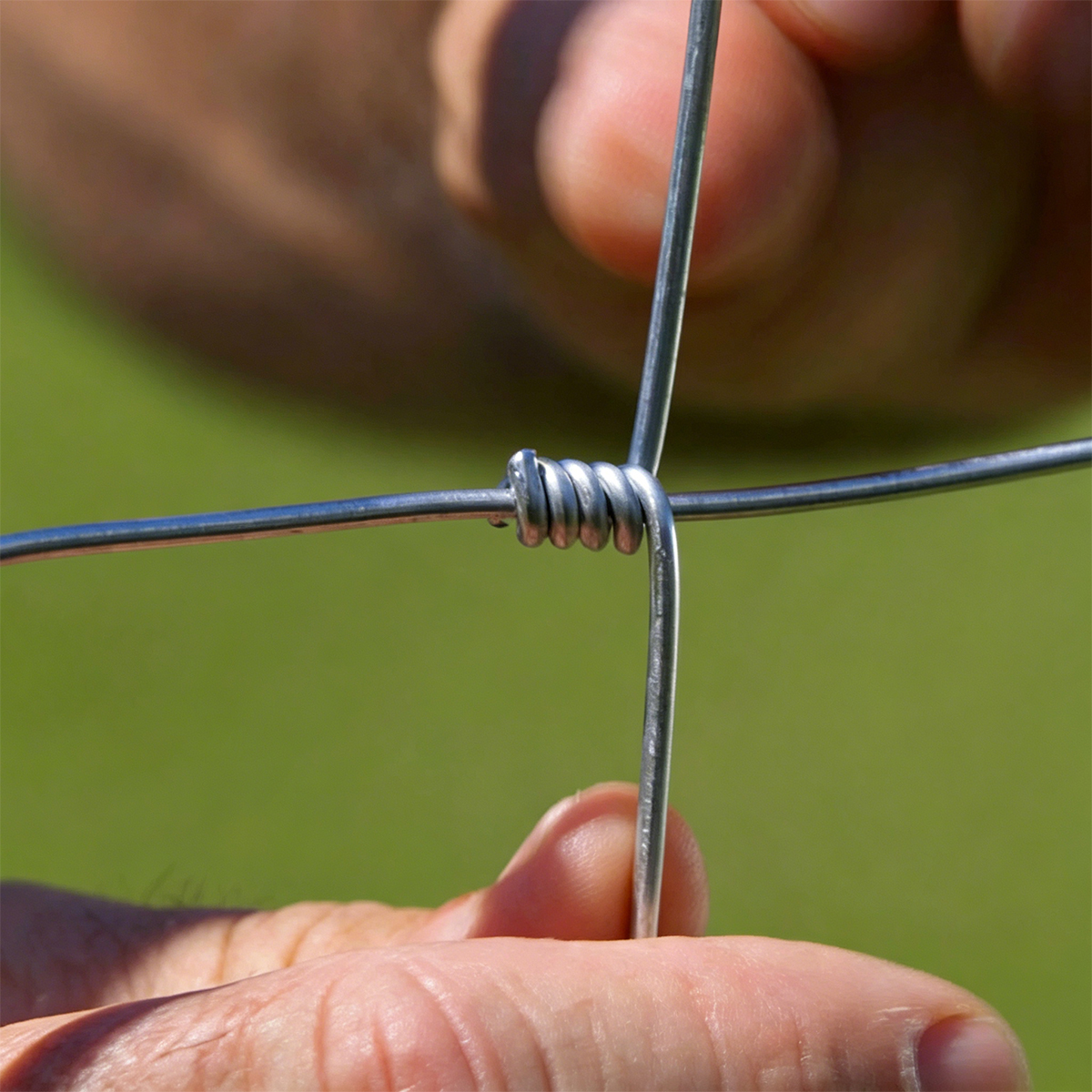

Representative hinge joint construction and rolled-wire detail.
Select a thumbnail to compare the roll, dimensions and construction.
900mm Hinge Joint Stock Fence
A 900 mm galvanized woven-wire fence for buyers specifying a low farm division or stock-fence line. Compare six mesh layouts at the same height, then choose the wire and coating for your order.
Mesh layout: 8-900 [A-065]
Your selected layout is included in the quote request. Add quantity and destination in the form.
One height · several mesh choices
900 mm Hinge Joint Fence Specifications
At 900 mm, line-wire count makes a visible difference: the 10-wire layout has nine 100 mm openings, while lower wire counts include larger openings. Use this page to compare the opening schedule before choosing a stock-fence specification.
| Layout / reference | Height | Line wires | Vertical opening schedule | Select |
|---|---|---|---|---|
| 10-900 A-063 | 900 mm | 10 | 9 × 100 mm | |
| 9-900 A-064 | 900 mm | 9 | 2 × 150 + 6 × 100 mm | |
| 8-900 A-065 | 900 mm | 8 | 1 × 200 + 2 × 150 + 4 × 100 mm | |
| 7-900 A-066 | 900 mm | 7 | 2 × 200 + 2 × 150 + 2 × 100 mm | |
| 6-900 A-067 | 900 mm | 6 | 3 × 200 + 2 × 150 mm | |
| 6-900 A-095 | 900 mm | 6 | 1 × 200 + 3 × 180 + 1 × 160 mm |
The opening schedule lists gaps between horizontal line wires. Stay spacing is the horizontal distance between vertical wires. Different records can share a two-part layout code; include the reference in your RFQ.
Choose the Wire, Coating and Packing
The mesh code identifies the layout. These choices complete the specification for pricing and production.
Wire diameters, tensile options and zinc coating
Wire & mesh choices
| Construction | Hinge joint woven wire |
| Stay spacing | 50 mm increments, starting at 50 mm; specify the ordered dimension |
| Edge wire diameter | 1.8–3.2 mm; at least as thick as inner wires |
| Inner wire diameter | 1.8–2.5 mm; line and stay values specified separately |
| Diameter tolerance | −0.05 to 0.00 mm against the selected nominal diameter |
| Wire tensile options | 450 ± 50, 550 ± 50 or 1000 ± 50 MPa; confirm the line/stay combination |
| Roll length | Specify the required length in your RFQ |
Coating & wholesale supply
| Zinc option / MOQ | 40 ± 10 g/m² / 3 tonnes |
| Zinc option / MOQ | 200 ± 20 g/m² / 8 tonnes |
| Packing | Roll labels, pallet arrangement and protection agreed per order |
| Mixed models | Ask sales to review the mix against the minimum order and packing plan |
| Price & lead time | Quoted against the complete specification, quantity and destination |
| Roll weight | Calculated for the chosen wire, stay spacing and roll length |
| Documents | State the inspection and test documentation required with your RFQ |
Tensile values describe wire choices, not the breaking load of a finished fence. Specify the applicable product standard and coating test requirements separately; zinc mass alone does not establish a coating class or guarantee service life.
What your quotation and inspection plan should cover
- Approved height, line-wire count and opening schedule, with order drawing.
- Separate edge, line and stay wire diameters and tensile requirements.
- Zinc mass, applicable test requirements and requested documentation.
- Roll length, roll weight, labels, packing arrangement and destination port.
Ask for sample and batch inspection arrangements with your quotation. Timing and documentation are agreed for the order.
Low farm divisions and stock-fence purchasing programs
Check the complete fence system
A 900 mm fence is a low-height option. It is not a substitute for a taller livestock boundary; review animal size, escape behavior and ground clearance with the installer.
Read the field fence installation guideKeep metric and imperial sizes separate
900 mm is different from the 813 mm / 32 in model and the 991 mm / 39 in model. Order the actual height your project requires.
Read the fence size and model guideBuyer Questions
What does 8-900 mean?
It identifies 8 horizontal line wires and a 900 mm height. The reference A-065 identifies the opening schedule. Stay spacing, wire specification, coating and roll length are specified separately.
How do I compare layouts at this height?
At 900 mm, line-wire count makes a visible difference: the 10-wire layout has nine 100 mm openings, while lower wire counts include larger openings. Use this page to compare the opening schedule before choosing a stock-fence specification.
Is 150 mm stay spacing the same as 6 inches?
No. Six inches is 152.4 mm. Specify the actual spacing and tolerance required instead of treating an imperial model and a metric layout as interchangeable.
What roll length and quantity should I request?
Enter your required roll length and total quantity. The factory quotation confirms the length, roll weight, packing and lead time for the selected construction.
What is the minimum order?
The metric range has a 3 tonne minimum for 40 ± 10 g/m² zinc and an 8 tonne minimum for 200 ± 20 g/m² zinc. Ask sales to review mixed-layout eligibility for your order.
What should a quotation include?
Layout reference, height, stay spacing, edge/line/stay wire diameters, tensile combination, zinc mass, roll length, quantity, labels, packing and destination port.
Compare Nearby Heights
